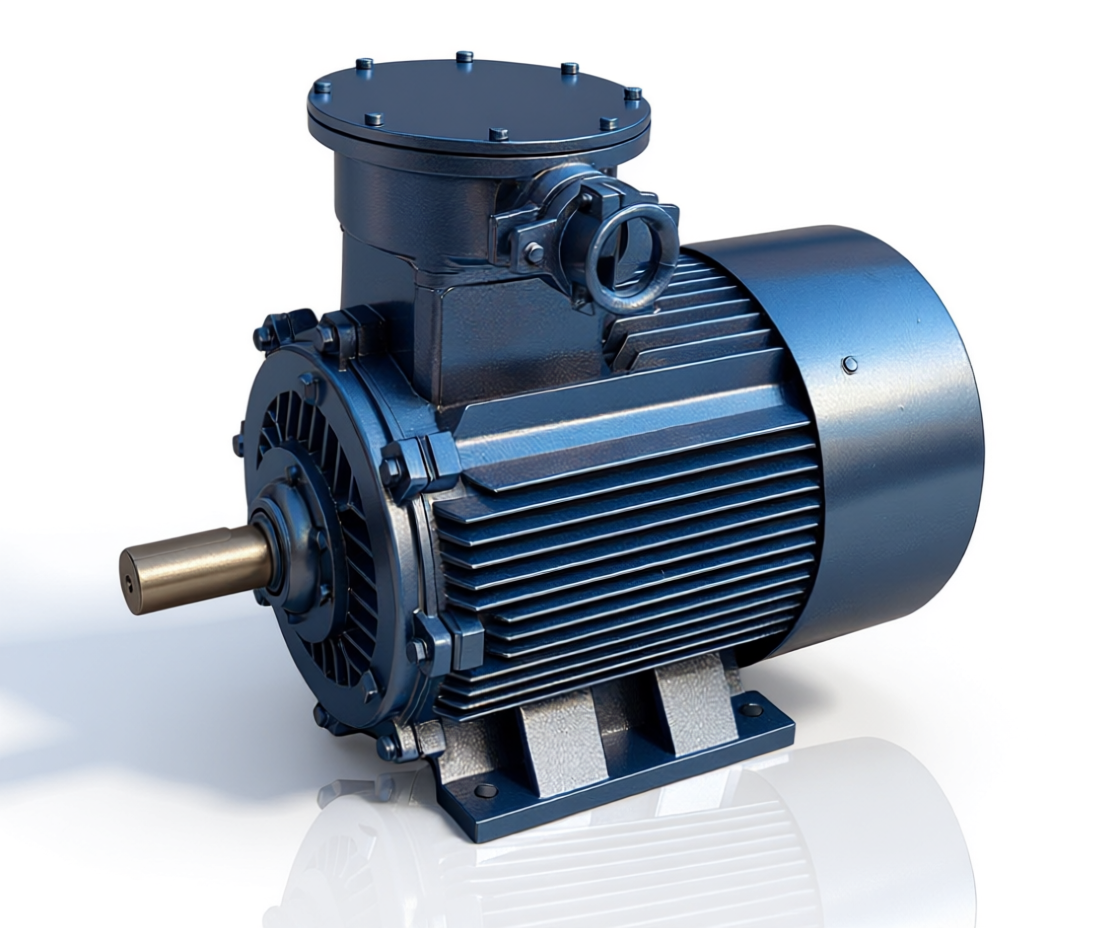

YBK3 Series Flameproof Three Phase Asynchronous Motor for Coal Mines

Description

Spefication of YBK3 Series Flameproof Three Phase Asynchronous Motor for Coal Mine

Type	Power (KW)	Current (A) 380V	Current (A) 660V	Current (A) 1140V	Speed 50HZ	Powerfactor (cosΦ)	Efficiency (%)	Ist/In	Tst/Tn	Tmax/Tn	Noise dB（A）	Weight (kg)
YBK3-80M1-2	0.75kW	1.77	1.02	0.59	2825	0.83	77.5	6.8	2.3	2.3	67	43
YBK3-80M2-2	1.1kW	2.43	1.4	0.81	2825	0.83	82.8	7.3	2.3	2.3	67	46
YBK3-90S-2	1.5kW	3.23	1.86	1.08	2840	0.84	84.1	7.6	2.3	2.3	72	52
YBK3-90L-2	2.2kW	4.59	2.64	1.53	2840	0.85	85.6	7.8	2.3	2.3	72	55
YBK3-100L-2	3kW	5.97	3.44	1.99	2880	0.88	86.7	8.1	2.3	2.3	76	71
YBK3-112M-2	4kW	7.88	4.54	2.63	2890	0.88	87.6	8.3	2.3	2.3	77	89
YBK3-132S1-2	5.5kW	10.72	6.17	3.57	2900	0.88	88.6	8	2.2	2.3	80	105
YBK3-132S2-2	7.5kW	14.31	8.24	4.77	2900	0.89	89.5	7.8	2.2	2.3	80	112
YBK3-160M1-2	11kW	20.75	11.95	6.92	2930	0.89	90.5	7.9	2.2	2.3	86	161
YBK3-160M2-2	15kW	28.05	16.15	9.35	2930	0.89	91.3	8	2.2	2.3	86	174
YBK3-160L-2	18.5kW	34.4	19.81	11.47	2930	0.89	91.8	8.1	2.2	2.3	86	193
YBK3-180M-2	22kW	40.74	23.46	13.58	2940	0.89	92.2	8.2	2.2	2.3	88	253
YBK3-200L1-2	30kW	55.13	31.74	18.38	2950	0.89	92.9	7.5	2.2	2.3	90	333
YBK3-200L2-2	37kW	67.7	38.98	22.57	2950	0.89	93.3	7.5	2.2	2.3	90	350
YBK3-225M-2	45kW	81.99	47.21	27.33	2970	0.89	93.7	7.6	2.2	2.3	92	460
YBK3-250M-2	55kW	99.89	57.51	33.3	2970	0.89	94	7.6	2.2	2.3	93	529
YBK3-280S-2	75kW	135.35	77.93	45.12	2970	0.89	94.6	6.9	2	2.3	94	718
YBK3-280M-2	90kW	161.73	93.12	53.91	2970	0.89	95	7	2	2.3	94	837
YBK3-315S-2	110kW	195.48	112.55	65.16	2980	0.9	95	7.1	2	2.2	96	1265
YBK3-315M-2	132kW	233.59	134.49	77.86	2980	0.9	95.4	7.1	2	2.2	96	1334
YBK3-315L1-2	160kW	280.03	161.23	93.34	2980	0.91	95.4	7.1	2	2.2	98	1553
YBK3-315L-2	185kW	323.78	186.42	107.93	2980	0.91	95.4	7.1	2	2.2	98	1725
YBK3-315L2-2	200kW	350.03	201.53	116.68	2980	0.91	95.4	7.1	2	2.2	98	1840
YBK3-355S1-2	185kW	323.78	186.42	107.93	2980	0.91	95.4	7.1	2	2.2	98	1944
YBK3-355S1-2	200kW	350.03	201.53	116.68	2980	0.91	95.4	7.1	2	2.2	98	1944
YBK3-355M1-2	220kW	385.04	221.69	128.35	2980	0.91	95.4	7.1	2	2.2	100	2116
YBK3-355M2-2	250kW	435.71	250.86	145.23	2980	0.91	95.8	7.1	2	2.2	100	2415
YBK3-355L1-2	280kW	488	280.97	162.67	2980	0.91	95.8	7.1	2	2.2	100	2599
YBK3-355L2-2	315kW	549	316.09	183	2980	0.91	95.8	7.1	2	2.2	100	2668
YBK3-80M1-4	0.55kW	1.38	0.79	0.46	1390	0.75	80.7	6.3	2.3	2.3	58	43
YBK3-80M2-4	0.75kW	1.85	1.07	0.62	1390	0.75	82.3	6.5	2.3	2.3	58	46
YBK3-90S-4	1.1kW	2.66	1.53	0.89	1400	0.75	83.8	6.6	2.3	2.3	61	51
YBK3-90L-4	1.5kW	3.58	2.06	1.19	1400	0.75	85	6.9	2.3	2.3	61	55
YBK3-100L1-4	2.2kW	4.78	2.75	1.59	1420	0.81	86.4	7.5	2.3	2.3	64	71
YBK3-100L2-4	3kW	6.36	3.66	2.12	1420	0.82	87.4	7.6	2.3	2.3	64	89
YBK3-112M-4	4kW	8.39	4.83	2.8	1440	0.82	88.3	7.7	2.3	2.3	65	105
YBK3-132S-4	5.5kW	11.42	6.58	3.81	1440	0.82	89.2	7.5	2	2.3	71	112
YBK3-132M-4	7.5kW	15.24	8.77	5.08	1440	0.83	90.1	7.4	2	2.3	71	117
YBK3-160M-4	11kW	21.61	12.44	7.2	1460	0.85	91	7.5	2.2	2.3	75	172
YBK3-160L-4	15kW	28.87	16.62	9.62	1460	0.86	91.8	7.5	2.2	2.3	75	193
YBK3-180M-4	18.5kW	35.45	20.41	11.82	1470	0.86	92.2	7.7	2.2	2.3	76	253
YBK3-180L-4	22kW	41.97	24.16	13.99	1470	0.86	92.6	7.8	2.2	2.3	76	278
YBK3-200L-4	30kW	56.87	32.74	18.95	1470	0.86	93.2	7.2	2.2	2.3	79	385
YBK3-225S-4	37kW	69.84	40.21	23.28	1480	0.86	93.6	7.3	2.2	2.3	81	460
YBK3-225M-4	45kW	84.67	48.75	28.22	1480	0.86	93.9	7.4	2.2	2.3	81	477
YBK3-250M-4	55kW	103.15	59.39	34.38	1480	0.86	94.2	7.4	2.2	2.3	83	644
YBK3-280S-4	75kW	136.74	78.73	45.58	1480	0.88	94.7	6.7	2.2	2.3	86	765
YBK3-280M-4	90kW	163.57	94.18	54.53	1485	0.88	95	6.9	2.2	2.3	86	897
YBK3-315S-4	110kW	199.08	114.62	66.36	1485	0.88	95.4	6.9	2.2	2.2	93	1223
YBK3-315M-4	132kW	238.9	137.55	79.63	1485	0.88	95.4	6.9	2.2	2.2	93	1380
YBK3-315L1-4	160kW	286.32	164.85	95.44	1485	0.89	95.4	6.9	2.2	2.2	94	1518
YBK3-315L-4	185kW	331.06	190.61	110.35	1485	0.89	95.4	6.9	2.2	2.2	94	1633
YBK3-315L2-4	200kW	357.9	206.06	119.3	1485	0.89	95.4	6.9	2.2	2.2	94	1725
YBK3-355S1-4	185kW	331.06	190.61	110.35	1488	0.89	95.4	6.9	2.2	2.2	94	1955
YBK3-355S2-4	200kW	357.9	206.06	119.3	1488	0.89	95.4	6.9	2.2	2.2	94	2070
YBK3-355M1-4	220kW	389.31	224.15	129.77	1488	0.9	95.4	6.9	2.2	2.2	95	2231
YBK3-355M2-4	250kW	440.56	253.66	146.86	1488	0.9	95.8	6.9	2.2	2.2	95	2392
YBK3-355L1-4	280kW	493.42	284.09	164.47	1488	0.9	95.8	6.9	2.2	2.2	95	2599
YBK3-355L2-4	315kW	555.1	319.6	185.03	1488	0.9	95.8	6.9	2.2	2.2	95	2990
YBK3-80M1-6	0.37kW	1.27	0.73	0.42	910	0.7	63	4.7	1.9	2	54	46
YBK3-80M2-6	0.55kW	1.54	0.89	0.52	910	0.72	75.4	4.7	1.9	2.1	54	51
YBK3-90S-6	0.75kW	2.04	1.17	0.68	910	0.72	77.7	5.8	2.1	2.1	57	69
YBK3-90L-6	1.1kW	2.87	1.65	0.96	910	0.73	79.9	5.9	2.1	2.1	57	71
YBK3-100L-6	1.5kW	3.78	2.18	1.26	940	0.74	81.5	6	2.1	2.1	61	89
YBK3-112M-6	2.2kW	5.42	3.12	1.81	940	0.74	83.4	6	2.1	2.1	65	105
YBK3-132S-6	3kW	7.26	4.18	2.42	960	0.74	84.9	6.2	2	2.1	69	112
YBK3-132M1-6	4kW	9.54	5.49	3.18	960	0.74	86.1	6.8	2	2.1	69	117
YBK3-132M2-6	5.5kW	12.75	7.34	4.25	960	0.75	87.4	7.1	2	2.1	69	120
YBK3-160M-6	7.5kW	16.42	9.45	5.47	970	0.78	89	6.7	2.1	2.1	73	177
YBK3-160L-6	11kW	23.51	13.54	7.84	970	0.79	90	6.9	2.1	2.1	73	202
YBK3-180L-6	15kW	30.92	17.8	10.31	970	0.81	91	7.2	2	2.1	73	258
YBK3-200L1-6	18.5kW	37.93	21.84	12.64	970	0.81	91.5	7.2	2.1	2.1	76	333
YBK3-200L2-6	22kW	44.31	25.51	14.77	970	0.82	92	7.3	2.1	2.1	76	362
YBK3-225M-6	30kW	60.84	35.03	20.28	980	0.81	92.5	7.1	2	2.1	76	471
YBK3-250M-6	37kW	71.96	41.43	23.99	980	0.84	93	7.1	2.1	2.1	78	603
YBK3-280S-6	45kW	85.03	48.96	28.35	980	0.86	93.5	7.2	2.1	2	80	730
YBK3-280M-6	55kW	103.59	59.64	34.53	980	0.86	93.8	7.2	2.1	2	80	839
YBK3-315S-6	75kW	142.32	81.94	47.44	985	0.85	94.2	6.7	2	2	85	1242
YBK3-315M-6	90kW	168.26	96.88	56.09	985	0.86	94.5	6.7	2	2	85	1311
YBK3-315L1-6	110kW	204.57	117.78	68.19	985	0.86	95	6.7	2	2	85	1506
YBK3-315L2-6	132kW	242.66	139.71	80.88	985	0.87	95	6.7	2	2	85	1610
YBK3-355M1-6	160kW	294.13	169.35	98.04	985	0.87	95	6.7	2	2	92	1897
YBK3-355M2-6	185kW	340.09	195.81	113.36	985	0.87	95	6.7	2	2	92	2024
YBK3-355M3-6	200kW	367.67	211.69	122.56	985	0.87	95	6.7	2	2	92	2265
YBK3-355L1-6	220kW	404.43	232.85	134.81	985	0.87	95	6.7	2	2	92	2461
YBK3-355L2-6	250kW	459.58	264.61	153.2	985	0.87	95	6.7	2	2	92	2587
YBK3-80M1-8	0.18kW	0.86	0.5	0.29	710	0.61	52	3.3	1.8	1.9	52	43
YBK3-80M2-8	0.25kW	1.13	0.65	0.38	710	0.61	55	3.3	1.8	1.9	52	46
YBK3-90S-8	0.37kW	1.44	0.83	0.48	710	0.62	63	4	1.8	1.9	56	52
YBK3-90L-8	0.55kW	2.07	1.19	0.69	710	0.63	64	4	1.8	2	56	55
YBK3-100L1-8	0.75kW	2.36	1.36	0.79	710	0.68	71	4	1.8	2	59	72
YBK3-100L2-8	1.1kW	3.32	1.91	1.11	710	0.69	73	5	1.8	2	59	90
YBK3-112M-8	1.5kW	4.34	2.5	1.45	710	0.7	75	5	1.8	2	61	106
YBK3-132S-8	2.2kW	5.8	3.34	1.93	710	0.73	79	6	1.8	2	64	113
YBK3-132M-8	3kW	7.71	4.44	2.57	710	0.73	81	6	1.8	2	64	118
YBK3-160M1-8	4kW	10.28	5.92	3.43	720	0.73	81	6	1.9	2	68	152
YBK3-160M2-8	5.5kW	13.42	7.73	4.48	720	0.75	83	6	1.9	2	68	166
YBK3-160L-8	7.5kW	17.54	10.1	5.85	720	0.76	85.5	6	1.9	2	68	202
YBK3-180L-8	11kW	25.13	14.47	8.38	730	0.76	87.5	6.5	2	2	70	258
YBK3-200L-8	15kW	33.69	19.4	11.23	730	0.76	89	6.6	2	2	73	262
YBK3-225S-8	18.5kW	40.04	23.05	13.34	730	0.78	90	6.6	1.9	2	73	431
YBK3-225M-8	22kW	47.35	27.26	15.78	730	0.78	90.5	6.6	1.9	2	73	454
YBK3-250M-8	30kW	63.4	36.5	21.13	730	0.79	91	6.5	1.9	2	75	609
YBK3-280S-8	37kW	77.77	44.78	25.93	740	0.79	91.5	6.6	1.9	2	76	695
YBK3-280M-8	45kW	94.07	54.16	31.36	740	0.79	92	6.6	1.9	2	76	805
YBK3-315S-8	55kW	111.17	64.01	37.06	740	0.81	92.8	6.6	1.8	2	82	1058
YBK3-315M-8	75kW	150.46	86.63	50.15	740	0.81	93.5	6.2	1.8	2	82	1265
YBK3-315L1-8	90kW	177.78	102.36	59.26	740	0.82	93.8	6.4	1.8	2	82	1288
YBK3-315L2-8	110kW	216.83	124.84	72.28	740	0.82	94	6.4	1.8	2	82	1495
YBK3-355M1-8	132kW	259.64	149.49	86.55	740	0.82	94.2	6.4	1.8	2	90	1886
YBK3-355M2-8	160kW	314.72	181.2	104.91	740	0.82	94.2	6.4	1.8	2	90	2093
YBK3-355L1-8	185kW	363.89	209.51	121.3	740	0.82	94.2	6.4	1.8	2	90	2415
YBK3-355L2-8	200kW	387.43	223.07	129.15	740	0.83	94.5	6.4	1.8	2	90	2530
YBK3-315S-10	45kW	99.63	57.36	33.21	587	0.75	91.5	6.2	1.5	2	82	920
YBK3-315M-10	55kW	121.11	69.73	40.37	587	0.75	92	6.2	1.5	2	82	1100
YBK3-315L1-10	75kW	162.1	93.33	54.03	587	0.76	92.5	5.8	1.5	2	82	1120
YBK3-315L2-10	90kW	190.96	109.95	63.66	587	0.77	93	5.9	1.5	2	82	1300
YBK3-355S-10	90kW	190.96	109.95	63.66	587	0.77	93	5.9	1.5	2	82	1640
YBK3-355M1-10	110kW	229.91	132.37	76.64	587	0.78	93.2	6	1.3	2	90	1820
YBK3-355M2-10	132kW	275	158.33	91.66	587	0.78	93.5	6	1.3	2	90	2100
YBK3-355L1-10	160kW	333.34	191.92	111.11	587	0.78	93.5	6	1.3	2	90	2200
