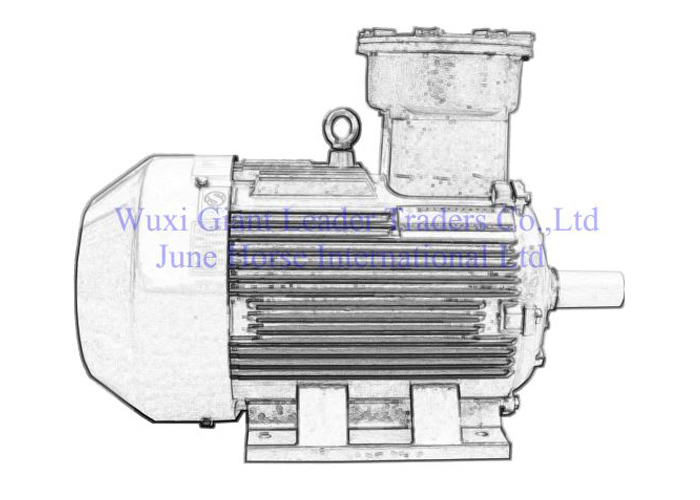

YFB3 Series Dust-Ignition Explosion Protected Electric Motor

Description

Spefication of YFB3 Series Dust-Ignition Explosion Protected Electric Motor

Type	Rated Power (kW)	Rated Current A 380V	Rated Speed r/min	Eff %	Power Facotr	Rated Torque N.m	Tst/Tn	Ist/In	Tmax/Tn	dB(A)
YFB3-71M1-2	0.37kW	0.94	2770	73.8	0.81	1.28	2.3	7	2.2	62
YFB3-71M2-2	0.55kW	1.3	2795	77.8	0.82	1.88	2.3	7	2.3	62
YFB3-80M1-2	0.75kW	1.7	2870	80.7	0.82	2.5	2.3	7	2.3	62
YFB3-80M2-2	1.1kW	2.4	2875	82.7	0.83	3.65	2.2	7.6	2.3	62
YFB3-90S-2	1.5kW	3.2	2880	84.2	0.84	4.97	2.2	7.9	2.3	67
YFB3-90L-2	2.2kW	4.6	2880	85.9	0.85	7.3	2.2	7.9	2.3	67
YFB3- 100L-2	3kW	6	2880	87. 1	0.87	10	2.2	8.5	2.3	74
YFB3- 112M-2	4kW	7.8	2915	88. 1	0.88	13. 1	2.2	8.5	2.3	77
YFB3- 132S1-2	5.5kW	10.6	2935	89.2	0.88	17.9	2	8.5	2.3	79
YFB3- 132S2-2	7.5kW	14.4	2930	90. 1	0.88	24.4	2	8.5	2.3	79
YFB3- 160M1-2	11kW	20.6	2950	91.2	0.89	35.6	2	8.5	2.3	81
YFB3- 160M2-2	15kW	27.9	2945	91.9	0.89	48.6	2	8.5	2.3	81
YFB3- 160L-2	18.5kW	34.2	2945	92.4	0.89	60	2	8.5	2.3	81
YFB3- 180M-2	22kW	40.5	2950	92.7	0.89	71.2	2	8.5	2.3	83
YFB3-200L1-2	30kW	54.9	2965	93.3	0.89	96.6	2	8.5	2.3	84
YFB3-200L2-2	37kW	67.4	2965	93.7	0.89	119	2	8.5	2.3	84
YFB3-225M-2	45kW	80.8	2965	94	0.9	145	2	8	2.3	86
YFB3-250M-2	55kW	98.5	2975	94.3	0.9	177	2	8	2.3	89
YFB3-280S-2	75kW	134	2975	94.7	0.9	241	1.8	7.5	2.3	91
YFB3-280M-2	90kW	160	2975	95	0.9	289	1.8	7.5	2.3	91
YFB3-315S-2	110kW	195	2975	95.2	0.9	353	1.8	7.5	2.3	92
YFB3-315M-2	132kW	234	2975	95.4	0.9	424	1.8	7.5	2.3	92
YFB3-315L1-2	160kW	279	2975	95.6	0.91	514	1.8	7.5	2.3	92
YFB3-315L2-2	200kW	349	2975	95.8	0.91	642	1.8	7.5	2.2	92
YFB3-355S1-2	185kW	323	2980	95.7	0.91	592	1.8	7.5	2.3	100
YFB3-355S2-2	200kW	349	2980	95.8	0.91	641	1.8	7.5	2.2	100
YFB3-355M1-2	220kW	383	2980	95.8	0.91	705	1.8	7.5	2.2	100
YFB3-355M2-2	250kW	436	2980	95.8	0.91	801	1.6	7.5	2.2	100
YFB3-355L1-2	280kW	488	2980	95.8	0.91	897	1.6	7.5	2.2	100
YFB3-355L2-2	315kW	549	2980	95.8	0.91	1009	1.6	7.5	2.2	100
YFB3-355L3-2	355kW	619	2980	95.8	0.91	1137	1.6	7.2	2.2	104
YFB3-355L4-2	375kW	654	2980	95.8	0.91	1202	1.6	7.2	2.2	104
YFB3-71M1-4	0.25kW	0.7	1355	73.5	0.74	1.76	2.1	6.6	2.2	55
YFB3-71M2-4	0.37kW	0.98	1375	77.3	0.75	2.57	2.1	6.6	2.2	55
YFB3-80M1-4	0.55kW	1.4	1430	80.8	0.75	3.67	2.4	6.6	2.3	56
YFB3-80M2-4	0.75kW	1.8	1430	82.5	0.75	5.01	2.3	6.6	2.3	56
YFB3-90S-4	1.1kW	2.6	1430	84. 1	0.76	7.35	2.3	6.8	2.3	59
YFB3-90L-4	1.5kW	3.5	1430	85.3	0.77	10	2.3	7	2.3	59
YFB3- 100L1-4	2.2kW	4.8	1440	86.7	0.81	14.6	2.3	7.6	2.3	64
YFB3- 100L2-4	3kW	6.3	1440	87.7	0.82	19.9	2.3	7.6	2.3	64
YFB3- 112M-4	4kW	8.4	1455	88.6	0.82	26.3	2.2	7.8	2.3	65
YFB3- 132S-4	5.5kW	11.2	1465	89.6	0.83	35.9	2	7.9	2.3	71
YFB3- 132M-4	7.5kW	15	1465	90.4	0.84	48.9	2	7.5	2.3	71
YFB3- 160M-4	11kW	21.5	1470	91.4	0.85	71.5	2.2	7.7	2.3	73
YFB3- 160L-4	15kW	28.8	1470	92. 1	0.86	97.4	2.2	7.8	2.3	73
YFB3- 180M-4	18.5kW	35.3	1470	92.6	0.86	120	2	7.8	2.3	76
YFB3- 180L-4	22kW	41.8	1470	93	0.86	143	2	7.8	2.3	76
YFB3-200L-4	30kW	56.6	1475	93.6	0.86	194	2	7.3	2.3	76
YFB3-225S-4	37kW	69.6	1480	93.9	0.86	239	2	7.4	2.3	78
YFB3-225M-4	45kW	84.4	1480	94.2	0.86	290	2	7.4	2.3	78
YFB3-250M-4	55kW	103	1485	94.6	0.86	354	2.2	7.4	2.3	79
YFB3-280S-4	75kW	136	1490	95	0.88	481	2	6.9	2.3	80
YFB3-280M-4	90kW	163	1490	95.2	0.88	577	2	6.9	2.3	80
YFB3-315S-4	110kW	197	1485	95.4	0.89	707	2	7	2.2	88
YFB3-315M-4	132kW	236	1485	95.6	0.89	849	2	7	2.2	88
YFB3-315L1-4	160kW	285	1485	95.8	0.89	1029	2	7.1	2.2	88
YFB3-315L2-4	200kW	352	1485	96	0.9	1286	2	7.1	2.2	88
YFB3-355S1-4	185kW	329	1490	95.9	0.89	1186	2	7.1	2.2	95
YFB3-355S2-4	200kW	352	1490	96	0.9	1282	2	7.1	2.2	95
YFB3-355M1-4	220kW	387	1490	96	0.9	1410	2	7.1	2.2	95
YFB3-355M2-4	250kW	440	1495	96	0.9	1597	2	7.1	2.2	95
YFB3-355L1-4	280kW	492	1495	96	0.9	1789	2	7.1	2.2	95
YFB3-355L2-4	315kW	554	1495	96	0.9	2012	2	7.1	2.2	95
YFB3-355L3-4	355kW	638	1495	96	0.9	2268	1.7	7	2.2	102
YFB3-355L4-4	375kW	674	1495	96	0.9	2395	1.7	7	2.2	102
YFB3-71M1-6	0. 18kW	0.65	870	63.9	0.66	1.98	1.9	6	2	52
YFB3-71M2-6	0.25kW	0.83	870	68.6	0.68	2.74	1.9	6	2	52
YFB3-80M1-6	0.37kW	1.1	925	73.5	0.7	3.82	1.9	6	2.1	54
YFB3-80M2-6	0.55kW	1.5	925	77.2	0.71	5.68	1.9	6	2.1	54
YFB3-90S-6	0.75kW	2	945	78.9	0.71	7.58	2	6	2.1	57
YFB3-90L-6	1.1kW	2.8	950	81	0.73	11. 1	2	6	2.1	57
YFB3- 100L-6	1.5kW	3.8	950	82.5	0.73	15. 1	2	6.5	2.1	61
YFB3- 112M-6	2.2kW	5.4	965	84.3	0.74	21.8	2	6.6	2.1	65
YFB3- 132S-6	3kW	7.2	975	85.6	0.74	29.4	2	6.8	2.1	69
YFB3- 132M1-6	4kW	9.5	975	86.8	0.74	39.2	2	6.8	2.1	69
YFB3- 132M2-6	5.5kW	12.7	975	88	0.75	53.9	2	7	2.1	69
YFB3- 160M-6	7.5kW	16.2	980	89. 1	0.79	73. 1	2	7	2.1	70
YFB3- 160L-6	11kW	23. 1	980	90.3	0.8	107	2	7.2	2.1	70
YFB3- 180L-6	15kW	30.9	980	91.2	0.81	146	2	7.3	2.1	73
YFB3-200L1-6	18.5kW	37.8	985	91.7	0.81	179	2	7.3	2.1	73
YFB3-200L2-6	22kW	44.8	985	92.2	0.81	213	2	7.4	2.1	73
YFB3-225M-6	30kW	59. 1	985	92.9	0.83	291	2	6.9	2.1	74
YFB3-250M-6	37kW	71.7	985	93.3	0.84	359	2	7.1	2.1	76
YFB3-280S-6	45kW	85.8	990	93.7	0.85	434	2	7.3	2	78
YFB3-280M-6	55kW	103	990	94. 1	0.86	531	2	7.3	2	78
YFB3-315S-6	75kW	143	990	94.6	0.84	723	2	6.6	2	83
YFB3-315M-6	90kW	170	990	94.9	0.85	868	2	6.7	2	83
YFB3-315L1-6	110kW	207	990	95. 1	0.85	1061	2	6.7	2	83
YFB3-315L2-6	132kW	244	990	95.4	0.86	1273	2	6.8	2	83
YFB3-355S-6	160kW	296	990	95.6	0.86	1543	1.8	6.8	2	85
YFB3-355M1-6	185kW	342	990	95.7	0.86	1785	1.8	6.8	2	85
YFB3-355M2-6	200kW	365	990	95.8	0.87	1929	1.8	6.8	2	85
YFB3-355L1-6	220kW	401	990	95.8	0.87	2112	1.8	6.8	2	85
YFB3-355L2-6	250kW	456	990	95.8	0.87	2412	1.8	6.8	2	85
YFB3-355L3-6	280kW	510	990	95.8	0.87	2701	1.8	6.8	2	91
YFB3-355L4-6	315kW	581	990	95.8	0.86	3039	1.8	6.8	2	91
YFB3-80M1-8	0. 18kW	0.8	690	58.7	0.61	2.49	1.8	5.2	1.9	52
YFB3-80M2-8	0.25kW	1	690	64. 1	0.61	3.46	1.8	5.7	1.9	52
YFB3-90S-8	0.37kW	1.3	695	69.3	0.61	5.08	1.8	6.2	1.9	56
YFB3-90L-8	0.55kW	1.9	695	73	0.61	7.56	1.8	5.9	2	56
YFB3- 100L1-8	0.75kW	2.3	705	75	0.67	10.2	1.8	6.2	2	59
YFB3- 100L2-8	1.1kW	3.1	705	77.7	0.69	14.9	1.8	6.2	2	59
YFB3- 112M-8	1.5kW	4.1	710	79.7	0.7	20.2	1.8	6.7	2	61
YFB3- 132S-8	2.2kW	5.7	725	81.9	0.71	29	1.8	6.7	2	64
YFB3- 132M-8	3kW	7.5	725	83.5	0.73	39.5	1.8	6.9	2	64
YFB3- 160M1-8	4kW	9.8	730	84.8	0.73	52.3	1.9	6.9	2	68
YFB3- 160M2-8	5.5kW	13. 1	730	86.2	0.74	72	1.9	6.9	2	68
YFB3- 160L-8	7.5kW	17.4	730	87.3	0.75	98. 1	1.9	6.6	2	68
YFB3- 180L-8	11kW	25.2	730	88.6	0.75	144	2	6.6	2	70
YFB3-200L-8	15kW	33.5	735	89.6	0.76	195	2	6.8	2	73
YFB3-225S-8	18.5kW	41	735	90. 1	0.76	240	1.9	6.8	2	73
YFB3-225M-8	22kW	47.3	735	90.6	0.78	286	1.9	7	2	73
YFB3-250M-8	30kW	63.2	735	91.3	0.79	390	1.9	6.7	2	75
YFB3-280S-8	37kW	77.5	740	91.8	0.79	478	1.9	6.7	2	76
YFB3-280M-8	45kW	93.9	740	92.2	0.79	581	1.9	6.7	2	76
YFB3-315S-8	55kW	112	740	92.5	0.81	710	1.8	6.8	2	82
YFB3-315M-8	75kW	151	740	93. 1	0.81	968	1.8	6.3	2	82
YFB3-315L1-8	90kW	179	740	93.4	0.82	1161	1.8	6.4	2	82
YFB3-315L2-8	110kW	218	740	93.7	0.82	1420	1.8	6.4	2	82
YFB3-355S-8	132kW	260	745	94	0.82	1692	1.8	6.4	2	89
YFB3-355M-8	160kW	314	745	94.3	0.82	2051	1.8	6.4	2	89
YFB3-355L1-8	185kW	363	745	94.5	0.82	2371	1.8	6.4	2	89
YFB3-355L2-8	200kW	387	745	94.6	0.83	2564	1.8	6.4	2	89
YFB3-355L3-8	220kW	426	745	94.6	0.83	2820	1.8	6.4	2	90
YFB3-355L4-8	250kW	484	745	94.6	0.83	3205	1.8	6.5	2	90
YFB3-315S- 10	45kW	99	590	92	0.75	728	1.5	6.2	2	90
YFB3-315M- 10	55kW	120	590	92	0.75	890	1.5	6.2	2	90
YFB3-315L1- 10	75kW	162	590	92.8	0.76	1214	1.5	5.8	2	90
YFB3-315L2- 10	90kW	191	590	93	0.77	1457	1.5	5.9	2	90
YFB3-355S- 10	90kW	191	590	93	0.77	1457	1.5	6	2	90
YFB3-355M1- 10	110kW	230	595	93.3	0.78	1766	1.3	6.1	2	90
YFB3-355M2- 10	132kW	274	595	93.8	0.78	2119	1.3	6.1	2	90
YFB3-355L1- 10	160kW	332	595	93.8	0.78	2568	1.3	6.1	2	90
YFB3-355L2- 10	185kW	384	595	93.8	0.78	2969	1.3	6.1	2	90
YFB3-355L3- 10	200kW	415	595	93.8	0.78	3210	1.3	6.1	2	90
YFB3-355L4- 10	220kW	457	595	93.8	0.78	3531	1.3	6.1	2	90
