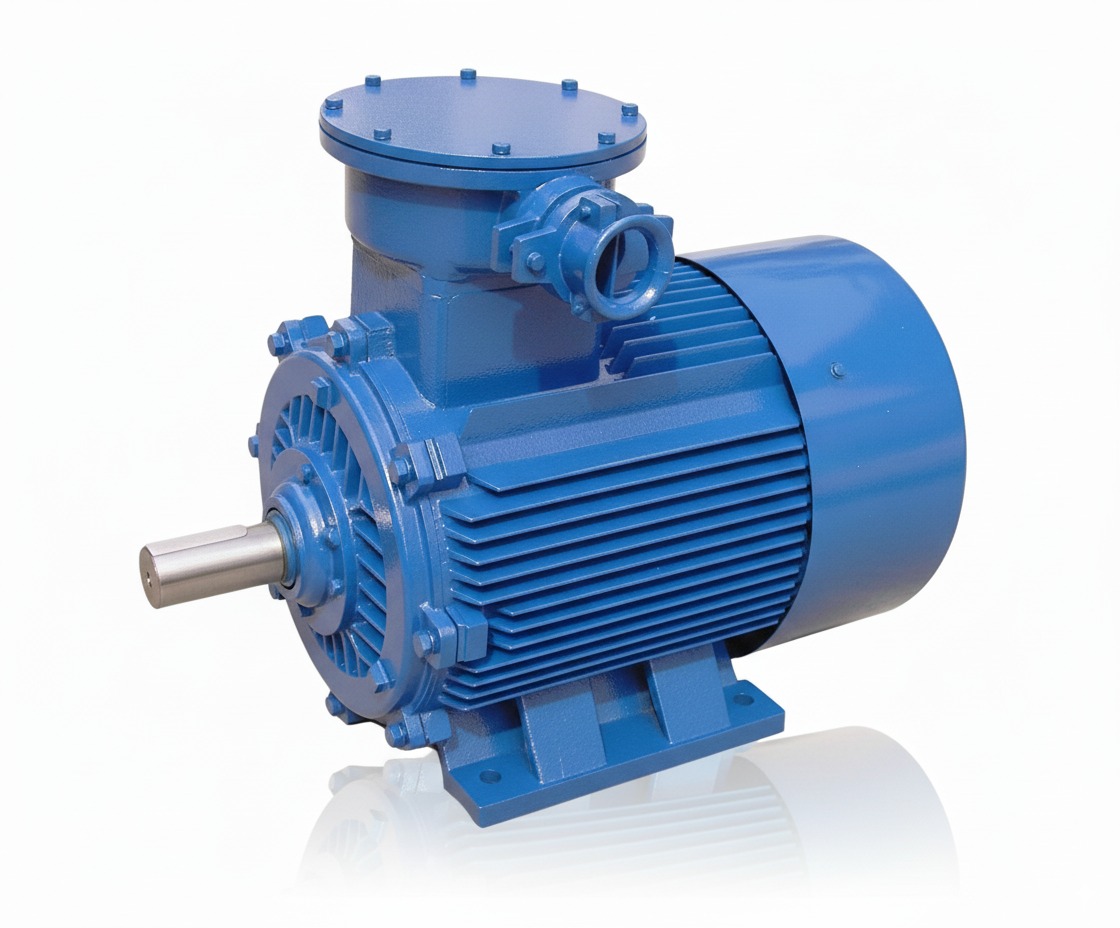

YB3 Series Flameproof Three-Phase Asynchronous Motor

Description

Spefication of YB3 Series Flameproof Three Phase Asynchronous Motor

Frame size	Output (kW)	Current (A) 380V	Speed (r/min)	Efficency (%)	Power factor (COSθ)	Noise dB(A)	Tst/Tn	Ist/In	Tmax/Tn	Weight (kg)
YB3-63M1-2	0.18	0.52	2720	66	0.8	61	2.3	5.5	2.2	14
YB3-63M2-2	0.25	0.69	2720	68	0.81	61	2.3	5.5	2.2	15
YB3-71M1-2	0.37	0.99	2740	70	0.81	64	2.3	6.1	2.2	17
YB3-71M2-2	0.55	1.36	2740	73	0.83	64	2.3	6.1	2.3	18
YB3-80M1-2	0.75	1.77	2845	77.5	0.82	67	2.3	6.8	2.3	26
YB3-80M2-2	1.1	2.43	2840	82.8	0.83	67	2.3	7.3	2.3	30
YB3-90S-2	1.5	3.22	2840	84.1	0.84	72	2.3	7.6	2.3	36
YB3-90L-2	2.2	4.59	2840	85.6	0.85	72	2.3	7.8	2.3	39
YB3-100L-2	3	6.04	2860	86.7	0.87	76	2.3	8.1	2.3	50
YB3-112M-2	4	7.88	2880	87.6	0.88	77	2.3	8.3	2.3	63
YB3-132S1-2	5.5	10.8	2900	88.6	0.88	80	2.2	8	2.3	88
YB3-132S2-2	7.5	14.3	2900	89.5	0.89	80	2.2	7.8	2.3	92
YB3-160M1-2	11	20.8	2930	90.5	0.89	86	2.2	7.9	2.3	143
YB3-160M2-2	15	28.1	2930	91.3	0.89	86	2.2	8	2.3	153
YB3-160L-2	18.5	34.4	2930	91.8	0.89	86	2.2	8.1	2.3	174
YB3-180M-2	22	40.7	2940	92.2	0.89	89	2.2	8.2	2.3	230
YB3-200L1-2	30	54.1	2950	92.9	0.89	92	2.2	7.5	2.3	296
YB3-200L2-2	37	67.7	2950	93.3	0.89	92	2.2	7.5	2.3	326
YB3-225M-2	45	82	2960	93.7	0.89	92	2.2	7.6	2.3	424
YB3-250M-2	55	99.9	2965	94	0.89	93	2.2	7.6	2.3	527
YB3-280S-2	75	135.3	2970	94.6	0.89	94	2	6.9	2.3	670
YB3-280M-2	90	161.7	2970	95	0.89	94	2	7	2.3	718
YB3-315S-2	110	195.5	2975	95	0.9	96	2	7.1	2.2	1078
YB3-315M-2	132	233.6	2975	95.4	0.9	96	2	7.1	2.2	1157
YB3-315L1-2	160	280	2975	95.4	0.91	99	2	7.1	2.2	1242
YB3-315L2-2	200	350	2975	95.4	0.91	99	2	7.1	2.2	1298
YB3-355S1-2	185	323.8	2985	95.4	0.91	99	2	7.1	2.2	1640
YB3-355S2-2	200	350	2985	95.4	0.91	99	2	7.1	2.2	1640
YB3-355M1-2	220	385	2985	95.4	0.91	103	2	7.1	2.2	1850
YB3-355M2-2	250	435.4	2985	95.8	0.91	103	2	7.1	2.2	1900
YB3-355L1-2	280	488	2985	95.8	0.91	103	2	7.1	2.2	2010
YB3-355L2-2	315	549	2985	95.8	0.91	103	2	7.1	2.2	2140
YB3-63M1-4	0 12	0.44	1310	58	0.72	52	2.3	4.4	2.2	14
YB3-63M2-4	0 .18	0.59	1310	63	0.73	52	2.3	4.4	2.2	15
YB3-71M1-4	0.25	0.78	1330	66	0.74	55	2.3	5.2	2.2	16
YB3-71M2-4	0.37	1.09	1330	69	0.75	55	2.3	5.2	2.2	17
YB3-80M1-4	0. 55	1.38	1390	80.7	0.75	58	2.3	6.3	2.3	26
YB3-80M2-4	0 .75	1.85	1380	82.3	0.75	58	2.3	6.5	2.3	29
YB3-90S-4	1.1	2.66	1390	83.8	0.75	61	2.3	6.6	2.3	34
YB3-90L-4	1.5	3.58	1390	85	0.75	61	2.3	6.9	2.3	39
YB3-100L1-4	2.2	4.78	1410	86.4	0.81	64	2.3	7.5	2.3	47
YB3-100L2-4	3	6.36	1410	87.4	0.82	64	2.3	7.6	2.3	52
YB3-112M-4	4	8.39	1435	88.3	0.82	65	2.3	7.7	2.3	67
YB3-132S-4	5.5	11.4	1440	89.2	0.82	71	2	7.5	2.3	88
YB3-132M-4	7.5	15.2	1440	90.1	0.83	71	2	7.4	2.3	101
YB3-160M-4	11	21.6	1460	91	0.85	75	2.2	7.5	2.3	147
YB3-160L-4	15	28.9	1460	91.8	0.86	75	2.2	7 5	2.3	172
YB3-180M-4	18.5	35.4	1470	92.2	0.86	76	2.2	7.7	2.3	236
YB3-180L-4	22	42	1470	92.6	0.86	76	2.2	7.8	2.3	252
YB3-200L-4	30	56.9	1470	93.2	0.86	79	2.2	7.2	2.3	320
YB3-225S-4	37	69.8	1475	93.6	0.86	81	2.2	7.3	2.3	402
YB3-225M-4	45	84.7	1475	93.9	0.86	81	2.2	7.4	2.3	442
YB3-250M-4	55	103.2	1480	94.2	0.86	83	2.2	7.4	2.3	544
YB3-280S-4	75	136.7	1480	94.7	0.88	86	2.2	6.7	2.3	714
YB3-280M-4	90	163.6	1480	95	0.88	86	2.2	7.2	2.3	794
YB3-315S-4	110	199.1	1480	95.4	0.88	93	2.2	6.9	2.2	1122
YB3-315M-4	132	238.9	1480	95.4	0.88	93	2.2	6.9	2.2	1221
YB3-315L1-4	160	286.3	1480	95.4	0.89	97	2.2	6.9	2.2	1298
YB3-315L2-4	200	357.9	1480	95.4	0.89	97	2.2	6.9	2.2	1408
YB3-355S1-4	185	331.1	1483	95.4	0.89	97	2.2	6.9	2.2	1650
YB3-355S2-4	200	357.9	1483	95.4	0.89	97	2.2	6.9	2.2	1680
YB3-355M1-4	220	289.3	1483	95.4	0.9	101	2.2	6.9	2.2	1870
YB3-355M2-4	250	440 5	1483	95.8	0.9	101	2.2	6.9	2.2	1870
YB3-355L1-4	280	493.4	1483	95.8	0.9	101	2.2	6.9	2.2	2050
YB3-355L2-4	315	555.1	1483	95.8	0.9	101	2.2	6.9	2.2	2050
YB3-71M1-6	0.18	0.67	850	62	0.66	52	1.9	4	2	17
YB3-71M2-6	0 25	0.89	850	63	0.68	52	1.9	4	2	18
YB3-80M1-6	0.37	1 27	885	63	0.7	54	1.9	4.7	2	25
YB3-80M2-6	0.55	1.54	885	75.4	0.72	54	1.9	4.7	2.1	27
YB3-90S-6	0.75	2.03	910	77.7	0.72	57	2.1	5.8	2.1	34
YB3-90L-6	1.1	2.87	910	79.9	0.73	57	2.1	5.9	2.1	38
YB3-100L-6	1.5	3.78	920	81.5	0.74	61	2.1	6	2.1	47
YB3-112M-6	2.2	5.42	935	83.4	0.74	65	2.1	6	2.1	63
YB3-132S-6	3	7.26	960	84.9	0.74	69	2	6.2	2.1	84
YB3-132M1-6	4	9.54	960	86.1	0.74	69	2	6.8	2.1	94
YB3-132M2-6	5.5	12.8	960	87.4	0.75	69	2	7.1	2.1	102
YB3-160M-6	7.5	16 4	970	89	0.78	73	2 1	6.7	2.1	142
YB3-160L-6	11	23.5	970	90	0.79	73	2.1	6.9	2.1	169
YB3-180L-6	15	30.9	970	91	0.81	73	2	7.2	2 1	240
YB3-200L1-6	18.5	37.9	980	91.5	0.81	76	2.1	7.2	2.1	298
YB3-200L2-6	22	44.3	980	92	0.82	76	2.1	7.3	2.1	308
YB3-225M-6	30	60.8	950	92.5	0.81	76	2	7.1	2.1	416
YB3-250M-6	37	72	980	93	0.84	78	2.1	7.1	2.1	511
YB3-280S-6	45	85	980	93.5	0.86	80	2.1	7.2	2	660
YB3-280M-6	55	103.6	980	93.8	0.86	80	2.1	7.2	2	718
YB3-315S-6	75	142.3	988	94.2	0.85	85	2	6.7	2	1045
YB3-315M-6	90	172.3	988	94.5	0.84	85	2	6.7	2	1167
YB3-315L1-6	110	207	988	95	0.85	85	2	6.7	2	1265
YB3-315L2-6	132	245.5	988	95	0.86	85	2	6.7	2	1342
YB3-355S-6	160	294.1	990	95	0.87	92	2	6.7	2	1800
YB3-355M-16	185	340.1	990	95	0.87	92	2	6.7	2	1960
YB3-35SM2-6	200	367.7	990	95	0.87	92	2	6.7	2	2040
YB3-355L1-6	220	404.4	990	95	0.87	92	2	6.7	2	2150
YB3-355L2-6	250	459.6	990	95	0.87	92	2	6.7	2	2200
YB3-80M1-8	0.18	0.86	645	52 0	0.61	52	1.8	3.3	1.9	26
YB3-80M2-8	0.25	1.13	645	55	0 61	52	1.8	3 3	1.9	27
YB3-90S-8	0.37	1.44	670	63	0.62	56	1.8	4	1.9	32
YB3-90L-8	0.55	2.07	670	64	0.63	56	1.8	4	2	35
YB3-100L1-8	0.75	2.36	680	71	0.68	59	1.8	4	2	41
YB3-100L2-8	1.1	3.32	680	73	0 69	59	1.8	5	2	43
YB3-112M-8	1.5	4.4	690	75	0.69	61	1.8	5	2	56
YB3-132S-8	2.2	5.8	705	79	0.73	64	1.8	6	2	76
YB3-132M-8	3	7.7	705	81	0.73	64	1.8	6	2	85
YB3-160M1-8	4	10.3	720	81	0.73	68	1.9	6	2	116
YB3-160M2-8	5.5	13.4	720	83	0.75	68	1.9	6	2	127
YB3-160L-8	7.5	17.6	720	85	0.76	68	1.9	6	2	151
YB3-180L-8	11	25.3	730	87	0.76	70	2	6.5	2	198
YB3-200L-8	15	33.7	730	89	0.76	73	2	6.6	2	256
YB3-225S-8	18.5	40.1	730	90	0.78	73	1.9	6.6	2	322
YB3-225M-8	22	47.4	730	90.5	0.78	73	1.9	6.6	2	349
YB3-250M-8	30	63.4	735	91	0.79	75	1.9	6.5	2	431
YB3-280S-8	37	77.8	735	91.5	0.79	76	1.9	6.6	2	556
YB3-280M-8	45	94.1	735	92	0.79	76	1.9	6.6	2	613
YB3-315S-8	55	111.2	740	92.8	0.81	82	1.8	6.6	2	930
YB3-315M-8	75	150	740	93.5	0.81	82	1.8	6.2	2	1090
YB3-315L1-8	90	177.8	740	93.8	0.82	82	1.8	6.4	2	1180
YB3-315L2-8	110	216.8	740	94	0.82	82	1.8	6.4	2	1270
YB3-355S-8	152	259.6	740	94.2	0.82	90	1.8	6.4	2	1800
YB3-355M-8	160	313.8	740	94.2	0.82	90	1.8	6.4	2	1980
YB3-355L1-8	185	362.9	740	94.2	0 82	90	1.8	6.4	2	2150
YB3-355L2-8	200	386.3	740	94.5	0.83	90	1.8	6.4	2	2200
YB3-315S-10	45	99.4	590	91.5	0.75	82	1.8	6.2	2	890
YB3-315M-10	55	121.1	590	92	0.75	82	1.5	6.2	2	1000
YB3-315L1-10	75	162.1	590	92.5	0.76	82	1.5	5.8	2	1120
YB3-315L2-10	90	191	590	93	0.77	82	1.5	5.9	2	1190
YB3-355S-10	90	191	590	93	0.77	82	1.5	6	2	1715
YB3-355M1-10	110	230	S90	93.2	0.78	90	1.3	6	2	1890
YB3-355M2-10	132	275	590	93.5	0.78	90	1.3	6	2	2020
YB3-355L1-10	160	332.4	S90	93.5	0.78	0	1.3	6	2	2240
YB3-355L2-10	185	384.3	590	93.5	0.78	90	1.3	6	2	2365
YB3-355L2-10	200	410.9	590	93.6	0.79	90	1.3	6	2	2445
YB3-315S-12	37	85.3	495	91.5	0.72	82	1.2	5	2	890
YB3-315M-12	45	103.8	495	91.5	0.72	82	1.2	5	2	1000
YB3-315L1-12	55	126.8	495	91.5	0.72	82	1.2	5	2	1120
YB3-315L2-12	75	173	495	91.5	0.72	82	1.2	5	2	1190
YB3-355M1-12	90	201.4	495	93	0.73	82	1.2	5	2	1890
YB3-355M2-12	110	238.3	495	93.5	0.75	90	1.2	5	2	2020
YB3-355L-12	132	286	495	93.5	0.75	90	1.2	5	2	2450
YB3-315M-14	37	88.3	421	91	0.7	82	1.2	5	2	1000
YB3-315L1-14	45	107.3	421	91	0.7	82	1.2	5	2	1120
YB3-315L2-14	55	129.7	421	92	0.7	82	1.2	5	2	1190
YB3-355S1-14	55	129.7	421	92	0.7	82	1.2	5	2	1715
YB3-355S2-14	75	172	421	92	0.72	82	1.2	5	2	1890
YB3-355M1-14	75	172	421	92	0.72	82	1.2	5	2	2020
YB3-355M2-14	90	205.3	421	92.5	0.72	82	1.2	5	2	2140
YB3-355L-14	110	250.9	421	92.5	0.72	90	1.2	5	2	2465
YB3-315M-16	30	76.3	370	90.5	0.66	82	1.2	5	2	1000
YB3-315L1-16	37	94.1	370	90 5	0.66	82	1.2	5	2	1120
YB3-315L2-16	45	114.5	370	90 5	0.66	82	1.2	5	2	1190
YB3-355S1-16	55	135.3	370	906	0.68	82	1.2	5	2	1715
YB3-355S2-16	75	184 5	370	90 8	0.68	82	1.2	5	2	1890
YB3-355M-16	90	221.5	370	90.8	0.68	82	1.2	5	2	2020
