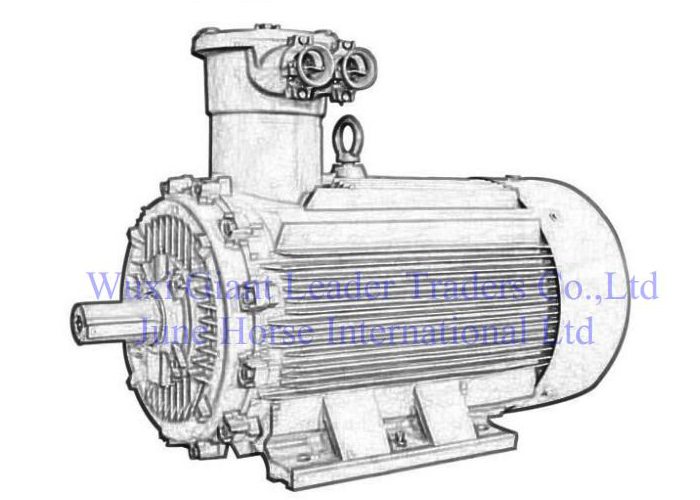

YB2 Series Low Voltage High Power Explosion-Proof Motor

Product Item：001

ExdIIBT4

ExdIICT4

For factory use

Description

Spefication of YB2 Series Low Voltage High Power Explosion-Proof Motor

Model	Output Kw	Current(660V)A	Speed r/min	Torque N.m	Eff%	Power factor COSφ	Locked-Rotor Current /Rated Current	Locked-Rotor Torque /Rated torque	Maximum Torque /Rated Torque	Noise dB(A)	kg.m2	Weight kg
YB2-400S-2	355kW	362.4	2980	1137.7	95.2	0.9	7	1.2	2	107	6.8	2840
YB2-400M-2	400kW	408.4	2980	1281.9	95.2	0.9	7	1.2	2	107	8.2	2910
YB2-400L-2	450kW	459.4	2980	1442.1	95.2	0.9	7	1.2	2	107	9.3	3050
YB2-450S-2	450kW	459.4	2980	1442.1	95.2	0.9	7	1.2	2	107	10.3	3660
YB2-450M-2	500kW	510.5	2980	1602.3	95.2	0.9	7	1.2	2	107	11.7	3920
YB2-450L-2	560kW	571.7	2980	1794.6	95.2	0.9	7	1.2	2	108	15	4100
YB2-400S-4	355kW	374.9	1490	2275.3	95.2	0.87	7	1.2	2	104	13.9	2990
YB2-400M-4	400kW	422.5	1490	2563.8	95.2	0.87	7	1.2	2	104	15	3060
YB2-400L-4	450kW	475.3	1490	2884.2	95.2	0.87	7	1.2	2	104	16.3	3190
YB2-450S-4	450kW	475.3	1490	2884.2	95.2	0.87	7	1.2	2	104	21	3810
YB2-450M-4	500kW	528.1	1490	3204.7	95.2	0.87	7	1.2	2	104	24	4070
YB2-450L1-4	560kW	591.5	1490	3589.3	95.2	0.87	7	1.2	2	108	25.6	4250
YB2-450L2-4	630kW	665.4	1490	4037.9	95.2	0.87	7	1.2	2	108	32.2	4570
YB2-5001-4	710kW	738.3	1490	4550.7	95.6	0.88	7	1.2	2	108	40	5700
YB2-5002-4	800kW	831.8	1490	5127.5	95.6	0.88	7	1.2	2	108	44	6150
YB2-5003-4	900kW	935.8	1490	5768.5	95.6	0.88	7	1.2	2	108	59	6700
YB2-5004-4	1000kW	1039.8	1490	6409.4	95.6	0.88	7	1.2	2	108	64	7250
YB2-400S-6	280kW	299.8	990	2701	95	0.86	7	1.2	2	92	20	2830
YB2-400M-6	315kW	337.3	990	3038.6	95	0.86	7	1.2	2	92	24	3120
YB2-400L-6	355kW	380.1	990	3424.5	95	0.86	7	1.2	2	92	25	3120
YB2-450S-6	355kW	380.1	990	3424.5	95	0.86	7	1.2	2	95	26	3390
YB2-450M-6	400kW	428.3	990	3858.6	95	0.86	7	1.2	2	95	29	3600
YB2-450L1-6	450kW	481.8	990	4340.9	95	0.86	7	1.2	2	95	32	3780
YB2-450L2-6	500kW	535.4	990	4823.2	95	0.86	7	1.2	2	95	35	4060
YB2-450L3-6	560kW	599.6	990	5402	95	0.86	7	1.2	2	95	37	4350
YB2-5001-6	630kW	664	990	6077.3	95.4	0.87	7	1.2	2	95	40	5760
YB2-5002-6	710kW	748.3	990	6849	95.4	0.87	7	1.2	2	95	43	5950
YB2-5003-6	800kW	843.2	990	7717.2	95.4	0.87	7	1.2	2	95	47	6680
YB2-5004-6	900kW	948.6	990	8681.8	95.4	0.87	7	1.2	2	95	51	7150
YB2-400S-8	220kW	244.6	745	2820.1	94.8	0.83	7	1.2	2	91	18.6	3050
YB2-400M-8	250kW	277.9	745	3204.7	94.8	0.83	7	1.2	2	91	19.6	3150
YB2-400L-8	280kW	311.3	745	3589.3	94.8	0.83	7	1.2	2	91	21.5	3320
YB2-450S-8	315kW	349.5	745	4037.9	95	0.83	7	1.2	2	93	32.8	3650
YB2-450M-8	355kW	393.8	745	4550.7	95	0.83	7	1.2	2	93	36	3820
YB2-450L-8	400kW	443.8	745	5127.5	95	0.83	7	1.2	2	93	40.9	4060
YB2-5001-8	450kW	497.1	745	5768.5	95.4	0.83	7	1.2	2	94	68.9	5580
YB2-5002-8	500kW	552.4	745	6409.4	95.4	0.83	7	1.2	2	94	74.2	6260
YB2-5003-8	560kW	618.7	745	7178.5	95.4	0.83	7	1.2	2	94	80.1	6580
YB2-5004-8	630kW	696	745	8075.8	95.4	0.83	7	1.2	2	94	89.3	7050
YB2-400S-10	200kW	231.4	595	3210.1	94.5	0.8	6.5	1.2	2	91	18.4	3050
YB2-400M-10	220kW	254.6	595	3531.1	94.5	0.8	6.5	1.2	2	91	23.4	3160
YB2-400L-10	250kW	285.7	595	4012.6	94.5	0.81	6.5	1.2	2	91	25.9	3370
YB2-450S-10	250kW	285.7	595	4012.6	94.5	0.81	6.5	1.2	2	93	44.3	3710
YB2-450M-10	280kW	318.3	595	4494.1	95	0.81	6.5	1.2	2	93	47.7	3870
YB2-450L1-10	315kW	358.1	595	5055.9	95	0.81	6.5	1.2	2	93	47.7	3880
YB2-450L2-10	355kW	403.6	595	5697.9	95	0.81	6.5	1.2	2	93	53.1	4020
YB2-5001-10	400kW	460.4	595	6420.2	95	0.8	6.5	1.2	2	93	76.8	5360
YB2-5002-10	450kW	518	595	7222.7	95	0.8	6.5	1.2	2	94	84.6	6020
YB2-5003-10	500kW	575.5	595	8025.2	95	0.8	6.5	1.2	2	94	92.7	6580
YB2-400S-12	185kW	220.7	495	3569.2	94	0.78	6.5	1.2	2	91	20.2	1850
YB2-400M-12	200kW	238.6	495	3858.6	94	0.78	6.5	1.2	2	91	23.5	2020
YB2-400L-12	220kW	252.8	495	4244.4	94	0.81	6.5	1.2	2	91	27.2	2100
YB2-450S-12	220kW	252.8	495	4244.4	94	0.81	6.5	1.2	2	93	38.3	3860
YB2-450M-12	250kW	285.7	495	4823.2	94.5	0.81	6.5	1.2	2	93	44.4	4020
YB2-450L-12	280kW	320	495	5402	94.5	0.81	6.5	1.2	2	93	51.1	4160
YB2-5001-12	315kW	373.8	495	6077.3	94.5	0.78	6.5	1.2	2	94	2.32	5480
YB2-5002-12	355kW	420	495	6849	94.8	0.78	6.5	1.2	2	94	2.86	6220
YB2-5003-12	400kW	466.7	495	7717.2	94.9	0.79	6.5	1.2	2	94	3.34	6760
YB2-400S-14	160kW	202.3	422	3620.9	93.5	0.74	6.5	1.2	2	91	18.9	1860
YB2-400M-14	185kW	233.9	422	4186.6	93.5	0.74	6.5	1.2	2	91	23.2	1980
YB2-400L-14	200kW	238.6	422	4526.1	94	0.78	6.5	1.2	2	91	27.8	2130
YB2-450S-14	200kW	238.6	422	4526.1	94	0.78	6.5	1.2	2	93	38.3	3660
YB2-450M-14	220kW	262.5	422	4978.7	94	0.78	6.5	1.2	2	93	44.4	3720
YB2-450L-14	250kW	298.3	422	5657.6	94	0.78	6.5	1.2	2	93	51.1	4060
YB2-5001-14	280kW	346.7	422	6336.5	94.2	0.75	6.5	1.2	2	94	6.56	5360
YB2-5002-14	315kW	390	422	7128.6	94.2	0.75	6.5	1.2	2	94	6.88	6210
YB2-5003-14	355kW	438.2	422	8033.8	94.5	0.75	6.5	1.2	2	94	74.3	6660
YB2-400S-16	132kW	182.6	370	3407	93	0.68	6.5	1.2	2	91	82.6	1850
YB2-400M-16	160kW	212	370	4129.7	93	0.71	6.5	1.2	2	91	90.8	1990
YB2-400L-16	185kW	245.1	370	4775	93	0.71	6.5	1.2	2	91	29.3	2150
YB2-450S-16	185kW	245.1	370	4775	93	0.71	6.5	1.2	2	93	38.3	3860
YB2-450M-16	200kW	265	370	5162.2	93	0.71	6.5	1.2	2	93	44.4	3990
YB2-450L-16	220kW	291.5	370	5678.4	93	0.71	6.5	1.2	2	93	51.1	4120
YB2-5001-16	250kW	330.5	370	6452.7	93.2	0.71	6.5	1.2	2	93	78.8	5980
YB2-5002-16	280kW	369	370	7227	93.5	0.71	6.5	1.2	2	94	86.6	6220
YB2-5003-16	315kW	413.8	370	8130.4	93.8	0.71	6.5	1.2	2	94	94.7	6460
