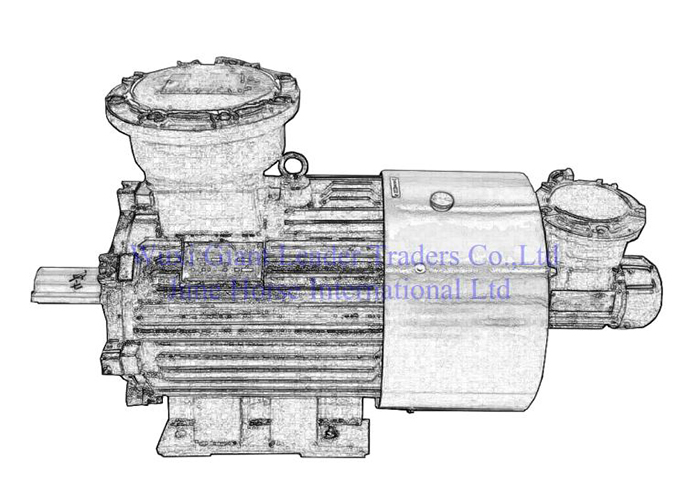

YBBP Series Variable-Frequency and Variable-speed Flameproof Electric Motors 400 and Above

Description

Spefication of YBBP Variable Frequency Flameproof Motor 400 and above

Frame Size	Power (KW)	Current （A） 380V	Current （A） 660V	Current （A） 1140V	Speed 50HZ	Efficiency (%)	Powerfactor （cosΦ）	Noise dB(A)	Vibration (mm/s)	Tst/Tn	Ist/In	Tmax/Tn	Weight (Kg)
YBBP-4001-2	355kW	625.6	360.19	208.53	2985	95.8	0.9	116	2.8	1.1	7.5	2.2	2630
YBBP-4002-2	400kW	704.9	405.85	234.97	2985	95.8	0.9	116	2.8	1.1	7.5	2.2	2700
YBBP-4003-2	450kW	793	456.58	264.33	2985	95.8	0.9	116	2.8	1.1	7.5	2.2	2830
YBBP-4004-2	500kW	881	507.24	293.67	2985	95.8	0.9	116	2.8	1.1	7.5	2.2	2920
YBBP-4005-2	560kW	987	568.27	329	2985	95.8	0.9	116	2.8	1.1	7.5	2.2	3000
YBBP-4501-2	630kW	1096	631.03	365.33	2985	96	0.91	116	2.8	1.1	7.5	2.2	3200
YBBP-4502-2	710kW	1235	711.06	411.67	2985	96	0.91	116	2.8	1.1	7.5	2.2	3300
YBBP-4503-2	800kW	1384	796.85	461.33	2985	96.5	0.91	116	2.8	1.1	7.5	2.2	3500
YBBP-4504-2	900kW	1557	896.45	519	2985	96.5	0.91	116	2.8	1.1	7.5	2.2	3600
YBBP-4001-4	355kW	640	368.48	213.33	1485	95.8	0.88	113	2.8	1	7.5	2.2	2970
YBBP-4002-4	400kW	721	415.12	240.33	1485	95.8	0.88	113	2.8	1	7.5	2.2	3080
YBBP-4003-4	450kW	811	466.94	270.33	1485	95.8	0.88	113	2.8	1	7.5	2.2	3170
YBBP-4004-4	500kW	901	518.76	300.33	1485	95.8	0.88	113	2.8	1	7.5	2.2	3250
YBBP-4005-4	560kW	1009	580.94	336.33	1485	95.8	0.88	113	2.8	1	7.5	2.2	3300
YBBP-4501-4	630kW	1120	644.85	373.33	1485	96	0.89	113	2.8	1	7.5	2.2	3500
YBBP-4502-4	710kW	1263	727.18	421	1485	96	0.89	113	2.8	1	7.5	2.2	3700
YBBP-4503-4	800kW	1423	819.3	474.33	1485	96	0.89	113	2.8	1	7.5	2.2	3950
YBBP-4504-4	900kW	1600	921.21	533.33	1485	96	0.89	113	2.8	1	7.5	2.2	4200
YBBP-4001-6	280kW	524	301.7	174.67	990	95.5	0.85	110	2.8	1.3	7	2	3010
YBBP-4002-6	315kW	590	339.7	196.67	990	95.5	0.85	110	2.8	1.3	7	2	3110
YBBP-4003-6	355kW	664	382.3	221.33	990	95.5	0.85	110	2.8	1.3	7	2	3200
YBBP-4004-6	400kW	749	431.24	249.67	990	95.5	0.85	110	2.8	1.3	7	2	3250
YBBP-4005-6	450kW	842	484.79	280.67	990	95.5	0.85	110	2.8	1.3	7	2	3300
YBBP-4501-6	500kW	925	532.58	308.33	990	95.5	0.86	110	2.8	1.3	7	2	3600
YBBP-4502-6	560kW	1036	596.48	345.33	990	95.5	0.86	110	2.8	1.3	7	2	3800
YBBP-4503-6	630kW	1163	669.61	387.67	990	95.7	0.86	110	2.8	1.3	7	2	4000
YBBP-4504-6	710kW	1311	754.82	437	990	95.7	0.86	110	2.8	1.3	7	2	4200
YBBP-4001-8	250kW	485	279.24	161.67	740	95.5	0.82	107	2.8	1.2	7	2	3020
YBBP-4002-8	280kW	543	312.64	181	740	95.5	0.82	107	2.8	1.2	7	2	3090
YBBP-4003-8	315kW	611	351.79	203.67	740	95.5	0.82	107	2.8	1.2	7	2	3150
YBBP-4004-8	355kW	680	391.52	226.67	740	95.5	0.83	107	2.8	1.2	7	2	3260
YBBP-4005-8	400kW	767	441.61	255.67	740	95.5	0.83	107	2.8	1.2	7	2	3300
YBBP-4501-8	450kW	863	496.88	287.67	740	95.5	0.83	107	2.8	1.2	7	2	3600
YBBP-4502-8	500kW	958.4	551.81	319.47	740	95.5	0.83	107	2.8	1.2	7	2	3800
YBBP-4503-8	560kW	1073	617.79	357.67	740	95.5	0.83	107	2.8	1.2	7	2	4000
YBBP-4504-8	630kW	1208	695.52	402.67	740	95.5	0.83	107	2.8	1.2	7	2	4200
YBBP-4001-10	200kW	406	233.76	135.33	590	94.7	0.79	107	2.8	1	7	2	3020
YBBP-4002-10	220kW	447	257.36	149	590	94.7	0.79	107	2.8	1	7	2	3090
YBBP-4003-10	250kW	508	292.48	169.33	590	94.7	0.79	107	2.8	1	7	2	3150
YBBP-4004-10	280kW	569	327.61	189.67	590	94.7	0.79	107	2.8	1	7	2	3260
YBBP-4005-10	315kW	632	363.88	210.67	590	94.7	0.8	107	2.8	1	7	2	3300
YBBP-4501-10	355kW	712	409.94	237.33	590	94.7	0.8	107	2.8	1	7	2	3600
YBBP-4502-10	400kW	798	459.45	266	590	92.5	0.8	107	2.8	1	7	2	3800
YBBP-4503-10	450kW	898	517.03	299.33	590	92.5	0.8	107	2.8	1	7	2	4000
YBBP-4504-10	500kW	997	574.03	332.33	590	92.5	0.8	107	2.8	1	7	2	4200
YBBP-4001-12	160kW	346	199.21	115.33	495	93.8	0.75	107	2.8	1.2	6.5	2	3020
YBBP-4002-12	185kW	400	230.3	133.33	495	93.8	0.75	107	2.8	1.2	6.5	2	3090
YBBP-4003-12	200kW	431	248.15	143.67	495	94	0.75	107	2.8	1.2	6.5	2	3150
YBBP-4004-12	220kW	474	272.91	158	495	94	0.75	107	2.8	1.2	6.5	2	3260
YBBP-4005-12	250kW	539	310.33	179.67	495	94	0.75	107	2.8	1.2	6.5	2	3300
YBBP-4501-12	280kW	588	338.55	196	495	94	0.77	107	2.8	1.2	6.5	2	3600
YBBP-4502-12	315kW	661	380.58	220.33	495	94	0.77	107	2.8	1.2	6.5	2	3800
YBBP-4503-12	355kW	741	426.64	247	495	94.5	0.77	107	2.8	1.2	6.5	2	4000
YBBP-4504-12	400kW	835	480.76	278.33	495	94.5	0.77	107	2.8	1.2	6.5	2	4200
YBBP-4001-14	132kW	294	169.27	98	425	93.5	0.73	107	2.8	0.8	5.5	2	3020
YBBP-4002-14	160kW	356	204.97	118.67	425	93.5	0.73	107	2.8	0.8	5.5	2	3090
YBBP-4003-14	185kW	412	237.21	137.33	425	93.5	0.73	107	2.8	0.8	5.5	2	3150
YBBP-4004-14	200kW	445	256.21	148.33	425	93.5	0.73	107	2.8	0.8	5.5	2	3260
YBBP-4005-14	220kW	490	282.12	163.33	425	93.5	0.73	107	2.8	0.8	5.5	2	3300
YBBP-4501-14	250kW	547	314.94	182.33	425	93.8	0.74	107	2.8	0.8	5.5	2	3600
YBBP-4502-14	280kW	613	352.94	204.33	425	93.8	0.74	107	2.8	0.8	5.5	2	3800
YBBP-4503-14	315kW	690	397.27	230	425	93.8	0.74	107	2.8	0.8	5.5	2	4000
YBBP-4504-14	355kW	777	447.36	259	425	93.8	0.74	107	2.8	0.8	5.5	2	4200
YBBP-4001-16	90kW	218	125.52	72.67	370	91	0.69	107	2.8	0.8	5	2	3020
YBBP-4002-16	110kW	266	153.15	88.67	370	91	0.69	107	2.8	0.8	5	2	3090
YBBP-4003-16	132kW	319	183.67	106.33	370	91	0.69	107	2.8	0.8	5	2	3150
YBBP-4004-16	160kW	387	222.82	129	370	91	0.69	107	2.8	0.8	5	2	3260
YBBP-4005-16	185kW	448	257.94	149.33	370	91	0.69	107	2.8	0.8	5	2	3300
YBBP-4501-16	200kW	460	264.85	153.33	370	93	0.71	107	2.8	0.8	5	2	3600
YBBP-4502-16	220kW	506	291.33	168.67	370	93	0.71	107	2.8	0.8	5	2	3800
YBBP-4503-16	250kW	575	331.06	191.67	370	93	0.71	107	2.8	0.8	5	2	4000
YBBP-4504-16	280kW	644	370.79	214.67	370	93	0.71	107	2.8	0.8	5	2	4200
