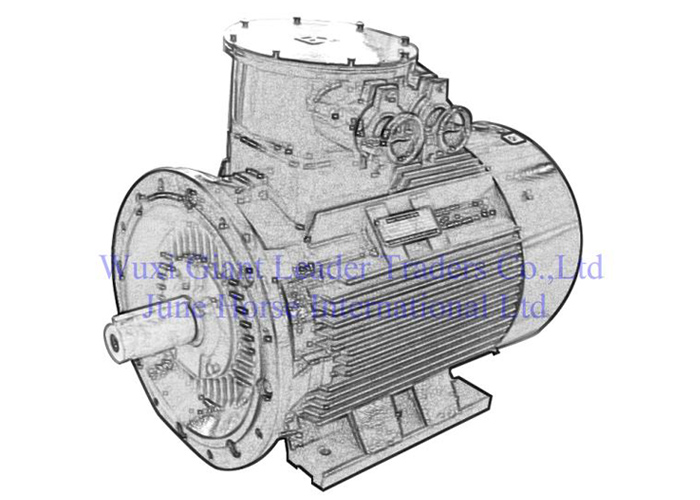

YBK2 Series Flameproof Three-Phase Asynchronous Motor for Coal Mines

Home Products Electric Motors Low Voltage Electric Motors YBK2 Series Flameproof Three-Phase Async

Description

Spefication of YBK2 Series Flameproof Three-Phase Asynchronous Motor for Coal Mines

Spefication of YBK2 Series Flameproof Three-Phase Asynchronous Motor for Coal Mines

Type Power
(KW) 		Current
（A）
380V 		Current
（A）
660V 		Current
（A）
1140V 		Speed
50HZ 		Efficiency
(%) 		Power
factor
（cosΦ） 		Noise
dB(A) 		Vibration
(mm/s) 		Tst/Tn Ist/In Tmax/Tn Weight
(Kg)
YBK2-631-2 0.18kW 0.5 0.29 0.17 2820 66 0.8 61 1.8 2.2 5 2.3 12
YBK2-632-2 0.25kW 0.66 0.38 0.22 2820 68 0.81 61 1.8 2.2 5 2.3 15
YBK2-711-2 0.37kW 0.96 0.55 0.32 2830 70 0.81 64 1.8 2.2 5.5 2.3 16
YBK2-712-2 0.55kW 1.33 0.77 0.45 2840 73 0.83 64 1.8 2.2 5.5 2.3 18
YBK2-801-2 0.75kW 1.8 1.04 0.6 2850 75 0.83 67 1.8 2.2 6 2.3 21
YBK2-802-2 1.1kW 2.6 1.5 0.87 2840 78 0.84 67 1.8 2.2 6 2.3 23
YBK2-90S-2 1.5kW 3.4 1.96 1.13 2850 79 0.84 72 1.8 2.2 7 2.3 32
YBK2-90L-2 2.2kW 4.8 2.76 1.6 2850 81 0.85 72 1.8 2.2 7 2.3 36
YBK2-100L-2 3kW 6.2 3.57 2.07 2870 83 0.88 76 1.8 2.2 7 2.3 42
YBK2-112M-2 4kW 8.1 4.66 2.7 2890 85 0.88 77 1.8 2.2 7 2.3 53
YBK2-132S1-2 5.5kW 11.1 6.39 3.7 2900 86 0.88 80 1.8 2.2 7.5 2.3 78
YBK2-132S2-2 7.5kW 14.8 8.52 4.93 2900 87 0.88 80 1.8 2.2 7.5 2.3 86
YBK2-160M1-2 11kW 21.6 12.44 7.2 2940 88 0.88 86 2.8 2.2 7.5 2.4 133
YBK2-160M2-2 15kW 28.8 16.58 9.6 2940 89 0.89 86 2.8 2.2 7.5 2.4 148
YBK2-160L-2 18.5kW 35.5 20.44 11.83 2940 89 0.89 86 2.8 2.2 7.5 2.4 166
YBK2-180M-2 22kW 41 23.61 13.67 2950 90.5 0.9 89 2.8 2 7.5 2.3 209
YBK2-200L1-2 30kW 55.5 31.95 18.5 2950 91.2 0.9 92 2.8 2 7.5 2.4 289
YBK2-200L2-2 37kW 67.9 39.09 22.63 2950 92 0.9 92 2.8 2 7.5 2.4 303
YBK2-225M-2 45kW 82.1 47.27 27.37 2960 92.5 0.9 92 2.8 2 7.5 2.3 278
YBK2-250M-2 55kW 99.7 57.4 33.23 2970 92.5 0.9 93 3.5 2.1 7.5 2.3 446
YBK2-280S-2 75kW 134.4 77.38 44.8 2970 93.2 0.91 94 3.5 2 7.5 2.3 635
YBK2-280M-2 90kW 160.7 92.52 53.56 2970 93.8 0.91 94 3.5 2.1 7.5 2.3 708
YBK2-315S-2 110kW 195.4 112.5 65.13 2982 94 0.91 96 3.5 1.8 7 2.3 998
YBK2-315M-2 132kW 232.2 133.69 77.4 2982 94.5 0.91 96 3.5 1.8 7 2.3 1035
YBK2-315L1-2 160kW 279.3 160.81 93.1 2982 94.6 0.92 99 3.5 1.8 7 2.3 1345
YBK2-315L2-2 200kW 348.8 200.82 116.26 2982 94.8 0.92 99 3.5 1.8 7 2.3 1600
YBK2-355S1-2 185kW 323 185.97 107.67 2980 94.6 0.92 99 3.5 1.8 7 2.3 1690
YBK2-355S2-2 200kW 348.4 200.59 116.13 2980 94.8 0.92 99 3.5 1.8 7 2.3 1690
YBK2-355M1-2 220kW 383.3 220.69 127.77 2980 94.8 0.92 103 3.5 1.6 7 2.4 1860
YBK2-355M2-2 250kW 443.2 255.18 147.74 2980 95.3 0.92 103 3.5 1.6 7 2.4 2100
YBK2-355L1-2 280kW 485.4 279.47 161.8 2980 95.3 0.92 103 3.5 1.6 7 2.4 2250
YBK2-355L2-2 315kW 544.2 313.33 181.4 2980 95.6 0.92 103 3.5 1.6 7 2.4 2280
YBK2-631-4 0.12kW 0.5 0.29 0.17 1350 58 0.72 52 1.8 2 4 2.2 13
YBK2-632-4 0.18kW 0.66 0.38 0.22 1360 63 0.73 52 1.8 2 4 2.2 15
YBK2-711-4 0.25kW 0.96 0.55 0.32 1370 66 0.74 55 1.8 2 4 2.2 17
YBK2-712-4 0.37kW 1.33 0.77 0.45 1380 69 0.75 55 1.8 2 4 2.2 19
YBK2-801-4 0.55kW 1.5 0.86 0.5 1390 71 0.75 58 1.8 2.4 5 2.3 21
YBK2-802-4 0.75kW 2 1.15 0.67 1390 73 0.77 58 1.8 2.4 5 2.3 23
YBK2-90S-4 1.1kW 2.9 1.67 0.97 1390 75 0.77 61 1.8 2.3 6 2.3 32
YBK2-90L-4 1.5kW 3.7 2.13 1.23 1390 78 0.79 61 1.8 2.3 6 2.3 36
YBK2-100L1-4 2.2kW 5.1 2.94 1.7 1420 80 0.81 64 1.8 2.3 6 2.4 42
YBK2-100L2-4 3kW 6.8 3.92 2.27 1420 82 0.82 64 1.8 2.3 6 2.4 53
YBK2-112M-4 4kW 8.8 5.07 2.94 1430 84 0.82 65 1.8 2.3 6 2.4 78
YBK2-132S1-4 5.5kW 11.5 6.62 3.83 1450 86 0.84 71 1.8 2.3 7 2.4 86
YBK2-132M-4 7.5kW 15.4 8.87 5.14 1450 87 0.85 71 2.8 2.3 7 2.4 133
YBK2-160M-4 11kW 22.3 12.84 7.43 1460 88 0.85 75 2.8 2.2 7 2.4 148
YBK2-160L-4 15kW 30.1 17.33 10.03 1460 89 0.85 75 2.8 2.2 7 2.4 166
YBK2-180M-4 18.5kW 36.5 21.02 12.17 1470 90 0.85 76 2.8 2.2 7 2.3 209
YBK2-180L-4 22kW 43.1 24.82 14.37 1470 90 0.85 76 2.8 2.2 7 2.3 209
YBK2-200L-4 30kW 57.6 33.16 19.2 1470 92.5 0.86 79 2.8 2.2 7.2 2.4 289
YBK2-225S-4 37kW 69.9 40.25 23.3 1480 92.8 0.87 81 2.8 2.2 7.2 2.4 303
YBK2-225M-4 45kW 84.7 48.77 28.24 1480 92.8 0.87 81 2.8 2.2 7.2 2.4 278
YBK2-250M-4 55kW 102.7 59.13 34.23 1480 93 0.87 83 3.5 2.2 7.2 2.4 446
YBK2-280S-4 75kW 139.6 80.38 46.54 1480 93.8 0.87 86 3.5 2.2 7.2 2.4 635
YBK2-280M-4 90kW 166.9 96.09 55.63 1480 94.2 0.87 86 3.5 2.2 7.2 2.4 708
YBK2-315S-4 110kW 198.7 114.4 66.23 1485 94.5 0.89 93 3.5 2.1 7 2.4 998
YBK2-315M-4 132kW 237.7 136.86 79.23 1485 94.8 0.89 93 3.5 2.1 7 2.4 1035
YBK2-315L1-4 160kW 284.3 163.69 94.77 1485 95 0.9 97 3.5 2.1 7 2.4 1345
YBK2-315L2-4 200kW 354.7 204.22 118.23 1485 95.2 0.9 97 3.5 2.1 7 2.4 1600
YBK2-355S1-4 185kW 328.7 189.25 109.57 1485 95 0.9 97 3.5 2.1 7 2.4 1690
YBK2-355S2-4 200kW 354.7 204.22 118.23 1485 95.2 0.9 97 3.5 2.1 7 2.3 1690
YBK2-355M1-4 220kW 390.1 224.6 130.03 1485 95.2 0.9 101 3.5 2.1 7 2.4 1860
YBK2-355M2-4 250kW 442.9 255 147.63 1485 95.5 0.9 101 3.5 2.1 7 2.4 2100
YBK2-355L1-4 280kW 469 270.03 156.33 1485 95.5 0.9 101 3.5 2.1 7 2.4 2280
YBK2-355L2-4 315kW 556.2 320.24 185.4 1485 95.6 0.9 101 3.5 2.1 7 2.4 2280
YBK2-711-6 0.18kW 0.64 0.37 0.21 870 62 0.66 52 1.8 1.9 4 2.1 14
YBK2-712-6 0.25kW 0.83 0.48 0.28 870 63 0.68 52 1.8 1.9 4 2.1 15
YBK2-801-6 0.37kW 1.3 0.75 0.43 890 66 0.7 54 1.8 1.9 4 2.1 17
YBK2-802-6 0.55kW 1.7 0.98 0.57 890 66 0.72 54 1.8 1.9 4 2.1 19
YBK2-90S-6 0.75kW 2.3 1.32 0.76 910 69 0.72 57 1.8 2.1 5 2.1 21
YBK2-90L-6 1.1kW 3.1 1.78 1.03 910 73 0.73 57 1.8 2.1 5 2.1 23
YBK2-100L-6 1.5kW 3.9 2.25 1.3 930 76 0.76 61 1.8 2.1 5 2.1 32
YBK2-112M-6 2.2kW 5.6 3.22 1.86 940 79 0.76 65 1.8 2.1 5 2.1 36
YBK2-132S-6 3kW 7.3 4.2 2.43 970 81 0.77 69 1.8 2.1 6 2.4 42
YBK2-132M1-6 4kW 9.4 5.41 3.13 970 83 0.78 69 1.8 2.1 6 2.4 53
YBK2-132M2-6 5.5kW 12.6 7.25 4.2 970 85 0.78 69 1.8 2.1 6.5 2.4 78
YBK2-160M-6 7.5kW 16.8 9.67 5.6 970 86 0.79 73 2.8 2.1 6.5 2.4 112
YBK2-160L-6 11kW 24.3 13.99 8.1 970 87.5 0.79 73 2.8 2.1 6.5 2.4 133
YBK2-180L-6 15kW 31.6 18.19 10.53 980 89 0.81 73 2.8 2.1 7 2.1 148
YBK2-200L1-6 18.5kW 37.6 21.65 12.53 980 90 0.83 76 2.8 2.2 7 2.4 185
YBK2-200L2-6 22kW 44.7 25.74 14.9 980 90 0.83 76 2.8 2.2 7 2.4 215
YBK2-225M-6 30kW 57.6 33.16 19.2 980 92 0.86 76 2.8 2.1 7 2.4 289
YBK2-250M-6 37kW 69.8 40.19 23.27 980 92 0.86 78 3.5 2.1 7 2.4 461
YBK2-280S-6 45kW 85.9 49.46 28.63 990 92.5 0.86 80 3.5 2.1 7 2.4 530
YBK2-280M-6 55kW 104.7 60.28 34.9 990 92.8 0.86 80 3.5 2.1 7 2.3 600
YBK2-315S-6 75kW 141.7 81.58 47.23 989 93.5 0.86 85 3.5 2 7 2.2 985
YBK2-315M-6 90kW 169.5 97.59 56.5 989 93.8 0.87 85 3.5 2 7 2.2 1080
YBK2-315L1-6 110kW 206.7 119.01 68.9 989 94 0.89 85 3.5 2 7 2.2 1150
YBK2-315L2-6 132kW 244.7 140.89 81.57 989 94.2 0.89 85 3.5 2 7 2.2 1200
YBK2-355S-6 160kW 292.3 168.29 97.43 989 94.5 0.9 92 3.5 2 7 2.2 1620
YBK2-355M1-6 185kW 338 194.61 112.67 989 94.5 0.9 92 3.5 2 7 2.2 1730
YBK2-355M2-6 200kW 364.6 209.92 121.53 989 94.7 0.9 92 3.5 2 7 2.2 1930
YBK2-355L1-6 220kW 401.1 230.94 133.7 989 94.7 0.9 92 3.5 2 7 2.2 2120
YBK2-355L2-6 250kW 454.3 261.57 151.44 989 95 0.9 95 3.5 2 7 2.2 2230
YBK2-801-8 0.18kW 0.8 0.46 0.27 650 52 0.61 52 1.8 1.8 3.3 1.9 17
YBK2-802-8 0.25kW 1.1 0.63 0.36 650 55 0.61 52 1.8 1.8 3.3 1.9 19
YBK2-90S-8 0.37kW 1.4 0.81 0.47 670 63 0.62 56 1.8 1.8 4 2 23
YBK2-90L-8 0.55kW 2.1 1.21 0.7 670 64 0.63 56 1.8 1.8 4 2 25
YBK2-100L1-8 0.75kW 2.4 1.38 0.8 690 71 0.68 59 1.8 1.8 4 2 33
YBK2-100L2-8 1.1kW 3.3 1.9 1.1 690 73 0.69 59 1.8 1.8 4 2 38
YBK2-112M-8 1.5kW 4.4 2.53 1.46 690 75 0.69 61 1.8 1.8 4 2 50
YBK2-132S-8 2.2kW 5.6 3.22 1.86 710 79 0.73 64 1.8 1.8 5.5 2.2 63
YBK2-132M-8 3kW 7.6 4.38 2.54 720 81 0.73 64 1.8 1.8 5.5 2.2 80
YBK2-160M1-8 4kW 10.3 5.93 3.43 720 81 0.73 68 2.8 1.9 6 2.2 120
YBK2-160M2-8 5.5kW 13.4 7.72 4.47 720 83 0.75 68 2.8 1.9 6 2.2 142
YBK2-160L-8 7.5kW 17.5 10.08 5.84 720 85 0.76 68 2.8 1.9 6 2.2 165
YBK2-180L-8 11kW 25.3 14.57 8.44 720 87 0.76 70 2.8 1.9 6 2.2 212
YBK2-200L-8 15kW 33.7 19.4 11.23 730 89 0.76 73 2.8 2 6.5 2.2 288
YBK2-225S-8 18.5kW 40 23.03 13.33 740 90 0.78 73 2.8 2 6.5 2.2 336
YBK2-225M-8 22kW 47.4 27.29 15.8 740 90.5 0.78 73 2.8 2 6.5 2.2 365
YBK2-250M-8 30kW 63.4 36.5 21.13 740 91 0.79 75 3.5 1.9 6.5 2 510
YBK2-280S-8 37kW 77.8 44.79 25.93 740 91.5 0.79 76 3.5 1.8 6 2 625
YBK2-280M-8 45kW 94.1 54.18 31.37 740 92 0.79 82 3.5 1.8 6 2 710
YBK2-315S-8 55kW 111.2 64.02 37.06 741 92.8 0.81 82 3.5 1.9 6.5 2.2 960
YBK2-315M-8 75kW 151.3 87.11 50.43 741 93 0.81 82 3.5 1.9 6.5 2.2 1050
YBK2-315L1-8 90kW 177.8 102.37 59.27 741 93.8 0.82 82 3.5 1.9 6.5 2.2 1220
YBK2-315L2-8 110kW 216.8 124.82 72.26 741 94 0.82 82 3.5 2 6.5 2.2 1380
YBK2-355S-8 132kW 259.6 149.47 86.54 742 94.2 0.82 90 3.5 2 6.5 2.2 1690
YBK2-355M-8 160kW 313.4 180.44 104.47 742 94.6 0.82 90 3.5 2 6.5 2.2 1830
YBK2-355L1-8 185kW 362.3 208.6 120.77 742 94.6 0.82 90 3.5 2 6.5 2.2 2200
YBK2-355L2-8 200kW 386.2 222.36 128.73 742 94.8 0.83 90 3.5 2 6.5 2.2 2250
YBK2-315S-10 45kW 99.1 57.06 33.03 596 92 0.75 82 3.5 1.5 6 2.1 1020
YBK2-315M-10 55kW 121.1 69.72 40.36 596 92 0.75 82 3.5 1.5 6 2.1 1060
YBK2-315L1-10 75kW 162.1 93.33 54.03 596 92.5 0.76 82 3.5 1.5 6 2.1 1210
YBK2-315L2-10 90kW 191 109.97 63.67 596 93 0.77 82 3.5 1.5 6 2.1 1380
YBK2-355S-10 90kW 190.8 109.85 63.6 597 93 0.77 82 3.5 1.5 6 2.1 1650
YBK2-355M1-10 110kW 230.4 132.65 76.8 597 93.2 0.78 90 3.5 1.3 5.5 2.1 1790
YBK2-355M2-10 132kW 275 158.33 91.66 597 93.5 0.78 90 3.5 1.3 5.5 2.1 1820
YBK2-355L1-10 160kW 333 191.73 111 597 93.6 0.78 90 3.5 1.3 5.5 2.1 2100
YBK2-355L2-10 185kW 385 221.67 128.34 597 93.6 0.78 90 3.5 1.3 5.5 2.1 2250
