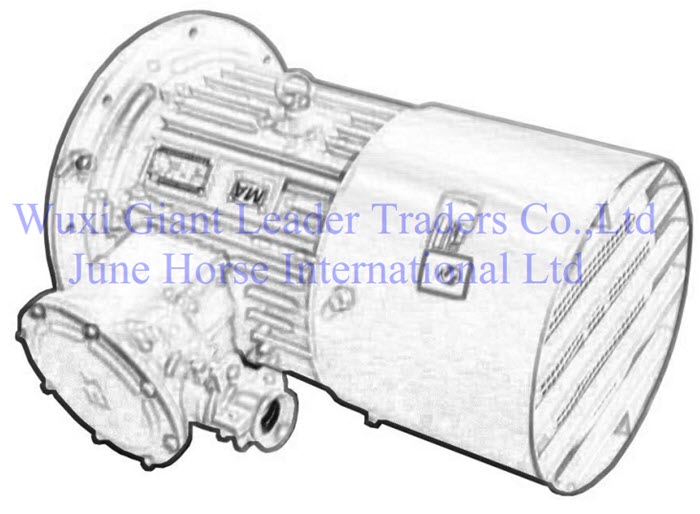

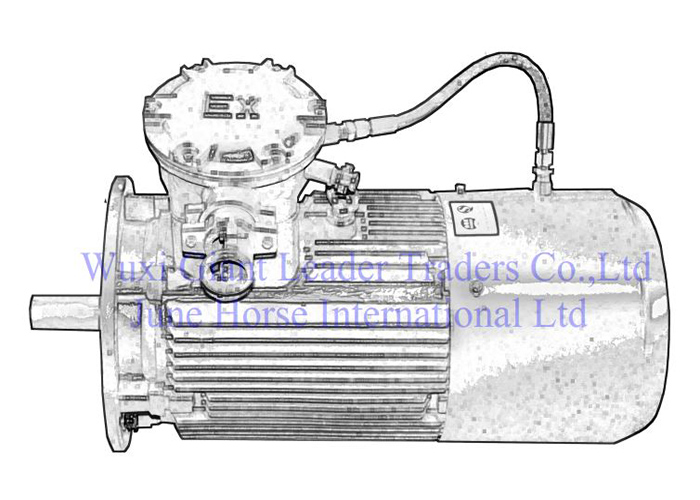

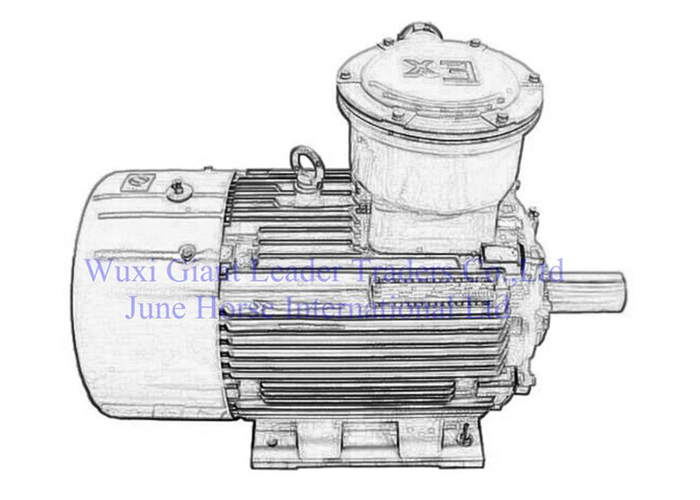

YBEJ Series Flameproof Brake Electric Motors

Description

Spefication of YBEJ Series Flameproof Brake Electric Motors

Frame size	Output (kW)	Current (A) 380V	Speed (r/min)	Efficency (%)	Power factor (COSθ)	Noise dB(A)	Vibration (mm/s) Free suspension /Rigid mounting	Moment Of Inertia (kg.m2)	Tst/Tn	Ist/In	Tmax/Tn	Weight (kg)
YBEJ-63M1-2	0.18kW	0.52	2720	66	0.8	61	1.6/1.3	0.0021	2.3	5.5	2.2	14
YBEJ-63M2-2	0.25kW	0.69	2720	68	0.81	61	1.6/1.3	0.0028	2.3	5.5	2.2	15
YBEJ-71M1-2	0.37kW	0.99	2740	70	0.81	64	1.6/1.3	0.0033	2.3	6.1	2.2	17
YBEJ-71M2-2	0.55kW	1.36	2740	73	0.83	64	1.6/1.3	0.0035	2.3	6.1	2.3	18
YBEJ-80M1-2	0.75kW	1.77	2845	77.5	0.82	67	1.6/1.3	0.0049	2.3	6.8	2.3	26
YBEJ-80M2-2	1.1kW	2.43	2840	82.8	0.83	67	1.6/1.3	0.0059	2.3	7.3	2.3	30
YBEJ-90S-2	1.5kW	3.22	2840	84.1	0.84	72	1.6/1.3	0.0095	2.3	7.6	2.3	36
YBEJ-90L-2	2.2kW	4.59	2840	85.6	0.85	72	1.6/1.3	0.012	2.3	7.8	2.3	39
YBEJ-100L-2	3kW	6.04	2860	86.7	0.87	76	1.6/1.3	0.0208	2.3	8.1	2.3	50
YBEJ-112M-2	4kW	7.88	2880	87.6	0.88	77	1.6/1.3	0.037	2.3	8.3	2.3	63
YBEJ-132S1-2	5.5kW	10.8	2900	88.6	0.88	80	1.6/1.3	0.0736	2.2	8	2.3	88
YBEJ-132S2-2	7.5kW	14.3	2900	89.5	0.89	80	1.6/1.3	0.0908	2.2	7.8	2.3	92
YBEJ-160M1-2	11kW	20.8	2930	90.5	0.89	86	2.2/1.8	0.241	2.2	7.9	2.3	143
YBEJ-160M2-2	15kW	28.1	2930	91.3	0.89	86	2.2/1.8	0.301	2.2	8	2.3	153
YBEJ-160L-2	18.5kW	34.4	2930	91.8	0.89	86	2.2/1.8	0.351	2.2	8.1	2.3	174
YBEJ-180M-2	22kW	40.7	2940	92.2	0.89	89	2.2/1.8	0.477	2.2	8.2	2.3	230
YBEJ-200L1-2	30kW	54.1	2950	92.9	0.89	92	2.2/1.8	0.767	2.2	7.5	2.3	296
YBEJ-200L2-2	37kW	67.7	2950	93.3	0.89	92	2.2/1.8	0.85	2.2	7.5	2.3	326
YBEJ-225M-2	45kW	82	2960	93.7	0.89	92	2.2/1.8	1.424	2.2	7.6	2.3	424
YBEJ-250M-2	55kW	99.9	2965	94	0.89	93	2.2/1.8	1.75	2.2	7.6	2.3	527
YBEJ-280S-2	75kW	135.3	2970	94.6	0.89	94	2.2/1.8	1.89	2	6.9	2.3	670
YBEJ-280M-2	90kW	161.7	2970	95	0.89	94	2.2/1.8	2.02	2	7	2.3	718
YBEJ-63M1-4	0 12kW	0.44	1310	58	0.72	52	1.6/1.3	0.0033	2.3	4.4	2.2	14
YBEJ-63M2-4	0 .18kW	0.59	1310	63	0.73	52	1.6/1.3	0.0035	2.3	4.4	2.2	15
YBEJ-71M1-4	0.25kW	0.78	1330	66	0.74	55	1.6/1.3	0.0042	2.3	5.2	2.2	16
YBEJ-71M2-4	0.37kW	1.09	1330	69	0.75	55	1.6/1.3	0.005	2.3	5.2	2.2	17
YBEJ-80M1-4	0. 55kW	1.38	1390	80.7	0.75	58	1.6/1.3	0.0085	2.3	6.3	2.3	26
YBEJ-80M2-4	0 .75kW	1.85	1380	82.3	0.75	58	1.6/1.3	0.0116	2.3	6.5	2.3	29
YBEJ-90S-4	1.1kW	2.66	1390	83.8	0.75	61	1.6/1.3	0.0189	2.3	6.6	2.3	34
YBEJ-90L-4	1.5kW	3.58	1390	85	0.75	61	1.6/1.3	0.0225	2.3	6.9	2.3	39
YBEJ-100L1-4	2.2kW	4.78	1410	86.4	0.81	64	1.6/1.3	0.045	2.3	7.5	2.3	47
YBEJ-100L2-4	3kW	6.36	1410	87.4	0.82	64	1.6/1.3	0.053	2.3	7.6	2.3	52
YBEJ-112M-4	4kW	8.39	1435	88.3	0.82	65	1.6/1.3	0.084	2.3	7.7	2.3	67
YBEJ-132S-4	5.5kW	11.4	1440	89.2	0.82	71	1.6/1.3	0.151	2	7.5	2.3	88
YBEJ-132M-4	7.5kW	15.2	1440	90.1	0.83	71	1.6/1.3	0.213	2	7.4	2.3	101
YBEJ-160M-4	11kW	21.6	1460	91	0.85	75	2.2/1.8	0.469	2.2	7.5	2.3	147
YBEJ-160L-4	15kW	28.9	1460	91.8	0.86	75	2.2/1.8	0.562	2.2	7 5	2.3	172
YBEJ-180M-4	18.5kW	35.4	1470	92.2	0.86	76	2.2/1.8	0.831	2.2	7.7	2.3	236
YBEJ-180L-4	22kW	42	1470	92.6	0.86	76	2.2/1.8	1.03	2.2	7.8	2.3	252
YBEJ-200L-4	30kW	56.9	1470	93.2	0.86	79	2.2/1.8	1.12	2.2	7.2	2.3	320
YBEJ-225S-4	37kW	69.8	1475	93.6	0.86	81	2.2/1.8	1.21	2.2	7.3	2.3	402
YBEJ-225M-4	45kW	84.7	1475	93.9	0.86	81	2.2/1.8	1.85	2.2	7.4	2.3	442
YBEJ-250M-4	55kW	103.2	1480	94.2	0.86	83	2.2/1.8	2.32	2.2	7.4	2.3	544
YBEJ-280S-4	75kW	136.7	1480	94.7	0.88	86	2.2/1.8	2.86	2.2	6.7	2.3	714
YBEJ-280M-4	90kW	163.6	1480	95	0.88	86	2.2/1.8	3.34	2.2	7.2	2.3	794
YBEJ-71M1-6	0.18kW	0.67	850	62	0.66	52	1.6/1.3	0.007	1.9	4	2	17
YBEJ-71M2-6	0 25kW	0.89	850	63	0.68	52	1.6/1.3	0.0085	1.9	4	2	18
YBEJ-80M1-6	0.37kW	1 27	885	63	0.7	54	1.6/1.3	0.0092	1.9	4.7	2	25
YBEJ-80M2-6	0.55kW	1.54	885	75.4	0.72	54	1.6/1.3	0.012	1.9	4.7	2.1	27
YBEJ-90S-6	0.75kW	2.03	910	77.7	0.72	57	1.6/1.3	0.023	2.1	5.8	2.1	34
YBEJ-90L-6	1.1kW	2.87	910	79.9	0.73	57	1.6/1.3	0.028	2.1	5.9	2.1	38
YBEJ-100L-6	1.5kW	3.78	920	81.5	0.74	61	1.6/1.3	0.055	2.1	6	2.1	47
YBEJ-112M-6	2.2kW	5.42	935	83.4	0.74	65	1.6/1.3	0.093	2.1	6	2.1	63
YBEJ-132S-6	3kW	7.26	960	84.9	0.74	69	1.6/1.3	0.199	2	6.2	2.1	84
YBEJ-132M1-6	4kW	9.54	960	86.1	0.74	69	1.6/1.3	0.247	2	6.8	2.1	94
YBEJ-132M2-6	5.5kW	12.8	960	87.4	0.75	69	1.6/1.3	0.308	2	7.1	2.1	102
YBEJ-160M-6	7.5kW	16 4	970	89	0.78	73	2.2/1.8	0.318	2 1	6.7	2.1	142
YBEJ-160L-6	11kW	23.5	970	90	0.79	73	2.2/1.8	0.742	2.1	6.9	2.1	169
YBEJ-180L-6	15kW	30.9	970	91	0.81	73	2.2/1.8	1.28	2	7.2	2 1	240
YBEJ-200L1-6	18.5kW	37.9	980	91.5	0.81	76	2.2/1.8	1.9	2.1	7.2	2.1	298
YBEJ-200L2-6	22kW	44.3	980	92	0.82	76	2.2/1.8	2.24	2.1	7.3	2.1	308
YBEJ-225M-6	30kW	60.8	950	92.5	0.81	76	2.2/1.8	2.89	2	7.1	2.1	416
YBEJ-250M-6	37kW	72	980	93	0.84	78	2.2/1.8	3.36	2.1	7.1	2.1	511
YBEJ-280S-6	45kW	85	980	93.5	0.86	80	2.2/1.8	3.46	2.1	7.2	2	660
YBEJ-280M-6	55kW	103.6	980	93.8	0.86	80	2.2/1.8	3.97	2.1	7.2	2	718
YBEJ-80M1-8	0.18kW	0.86	645	52 0	0.61	52	1.6/1.3	0.039	1.8	3.3	1.9	26
YBEJ-80M2-8	0.25kW	1.13	645	55	0 61	52	1.6/1.3	0.047	1.8	3 3	1.9	27
YBEJ-90S-8	0.37kW	1.44	670	63	0.62	56	1.6/1.3	0.059	1.8	4	1.9	32
YBEJ-90L-8	0.55kW	2.07	670	64	0.63	56	1.6/1.3	0.061	1.8	4	2	35
YBEJ-100L1-8	0.75kW	2.36	680	71	0.68	59	1.6/1.3	0.077	1.8	4	2	41
YBEJ-100L2-8	1.1kW	3.32	680	73	0 69	59	1.6/1.3	0.083	1.8	5	2	43
YBEJ-112M-8	1.5kW	4.4	690	75	0.69	61	1.6/1.3	0.095	1.8	5	2	56
YBEJ-132S-8	2.2kW	5.8	705	79	0.73	64	1.6/1.3	0.12	1.8	6	2	76
YBEJ-132M-8	3kW	7.7	705	81	0.73	64	1.6/1.3	0.2	1.8	6	2	85
YBEJ-160M1-8	4kW	10.3	720	81	0.73	68	2.2/1.8	0.36	1.9	6	2	116
YBEJ-160M2-8	5.5kW	13.4	720	83	0.75	68	2.2/1.8	0.46	1.9	6	2	127
YBEJ-160L-8	7.5kW	17.6	720	85	0.76	68	2.2/1.8	0.61	1.9	6	2	151
YBEJ-180L-8	11kW	25.3	730	87	0.76	70	2.2/1.8	1.06	2	6.5	2	198
YBEJ-200L-8	15kW	33.7	730	89	0.76	73	2.2/1.8	1.6	2	6.6	2	256
YBEJ-225S-8	18.5kW	40.1	730	90	0.78	73	2.2/1.8	2.28	1.9	6.6	2	322
YBEJ-225M-8	22kW	47.4	730	90.5	0.78	73	2.2/1.8	2.74	1.9	6.6	2	349
YBEJ-250M-8	30kW	63.4	735	91	0.79	75	2.2/1.8	2.91	1.9	6.5	2	431
YBEJ-280S-8	37kW	77.8	735	91.5	0.79	76	2.2/1.8	3.21	1.9	6.6	2	556
YBEJ-280M-8	45kW	94.1	735	92	0.79	76	2.2/1.8	3.42	1.9	6.6	2	613
