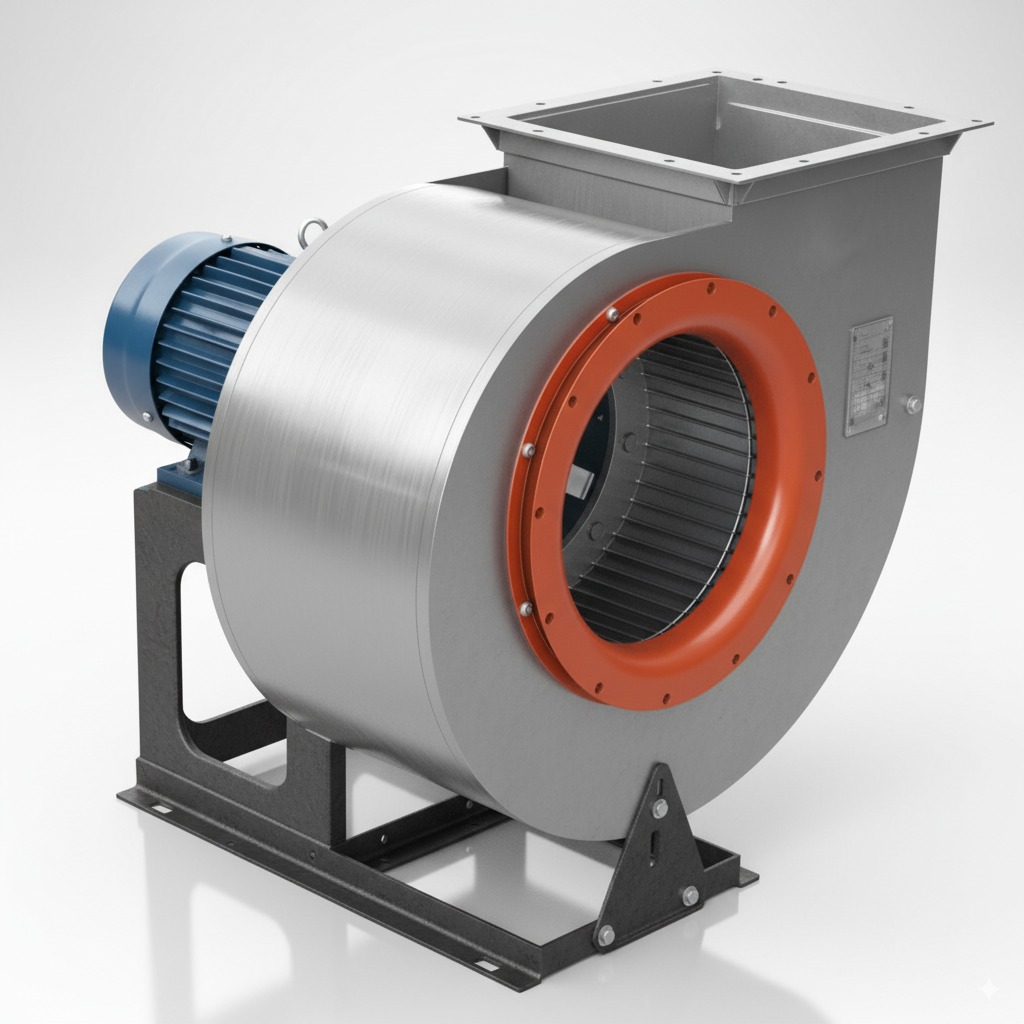

Spefication of Model 11-62A Low-noise Multi-blade Centrifugal Fan
| Machine No. | Rated Speed(r/min) | Electric Motor(kW-Poles) | Flow Rate(m³/h) | Total Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|
| 2.5 | 1450 | 0.75-4 | 1300-3300 | 450-350 | ≤65 |
| 2.8 | 1450 | 1.1-4 | 2200-4950 | 570-440 | ≤69 |
| 2.8 | 960 | 0.55-6 | 1430-3600 | 240-230 | ≤60 |
| 3 | 1450 | 2.2-4 | 3000-5800 | 600-450 | ≤71 |
| 3 | 960 | 0.75-6 | 2000-3500 | 300-250 | ≤62 |
| 3.2 | 1450 | 3.0-4 | 3400-8900 | 760-570 | ≤73 |
| 3.2 | 960 | 1.1-6 | 2180-5700 | 310-230 | ≤63 |
| 3.5 | 1450 | 4-4 | 4500-9900 | 910-700 | ≤76 |
| 3.5 | 960 | 1.5-6 | 2900-6400 | 380-290 | ≤68 |
| 4 | 960 | 2.2-6 | 4445-10500 | 550-430 | ≤73 |
| 4 | 960 | 3.0-6 | 4600-11800 | 522-395 | ≤75 |
| 4.5 | 960 | 4.0-6 | 6600-14880 | 555-440 | ≤76 |
| 5 | 960 | 4.0-6 | 8680-17880 | 920-640 | ≤79 |
| 5 | 960 | 5.5-6 | 9800-19300 | 815-616 | ≤77 |
| 6 | 960 | 7.5-6 | 10425-21473 | 1170-887 | ≤81 |
| 6 | 720 | 3-8 | 10068-16104 | 658-493 | ≤78 |
